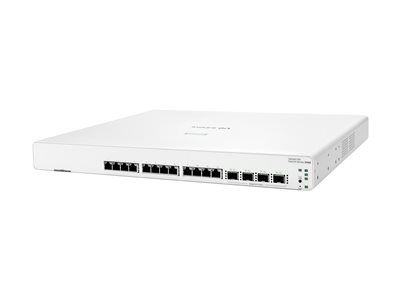

- Product Description HPE Aruba Instant On 1960 12XGT 4SFP+ Switch - switch - 12 ports - smart - rack-mountable
- Device Type Switch - 12 ports - L2+ - smart - stackable
- Enclosure Type Rack-mountable 1U
- Subtype 10 Gigabit Ethernet
- Ports 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+
- Performance Latency (100 Mbps): 7.4 µs ¦ Latency (1 Gbps): 4.2 µs ¦ Latency (10 Gbps): 1.1 µs ¦ Throughput: 238 Mpps ¦ Switching capacity: 320 Gbps
- Capacity IPv4 routing table entries: 512 ¦ IPv6 routing table entries: 512
- MAC Address Table Size 16000 entries
- Jumbo Frame Support 9216 bytes
- Routing Protocol IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD
- Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, RADIUS
- Features Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Trusted Platform Module (TPM), Cable Diagnostics Function, DHCP relay, Port Security, port based access control, DHCP client, Energy Efficient Ethernet, Class of Service (CoS), cloud managed, IP source guard, Internet Control Message Protocol (ICMP), dual image support, DNS client, LLDP-MED, ingress rate limiting, protected ports, BPDU Filter, Weighted Round Robin (WRR), ARP filtering, DSCP prioritization, auto voice VLAN, loop protection
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
- Power AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH) 17.4 in x 13.8 in x 1.7 in
- Weight 9.48 lbs
- Localization English / United States
- Pricing Type BTO
- Manufacturer Warranty Limited lifetime warranty
|
