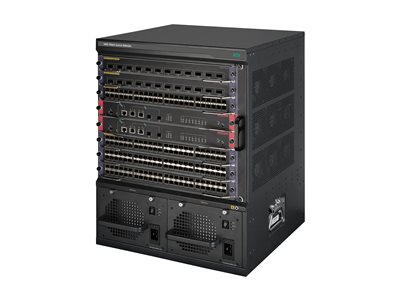

HPE FlexNetwork 7506X 6-slot Chassis - switch - managed - rack-mountable
HPE FlexNetwork 7506X 6-slot Chassis - switch - managed - rack-mountable
- Price:
$8,359.99
- Availability:
- Mfr #: R8N48A
- UNSPSC #: 43201601
- Item #: 009577684
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Fan tray |
| Compliant Standards | SSL |
Dimensions & Weight
| Width | 17.2 in |
| Depth | 16.5 in |
| Height | 22.6 in |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
General
| Device Type | Switch - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 13U |
| Subtype | 100 Gigabit Ethernet |
| Power Over Ethernet (PoE) | PoE |
| MAC Address Table Size | 288K entries |
| Routing Protocol | OSPF, IS-IS, BGP, OSPFv3, policy-based routing (PBR), MPLS |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | DHCP support, ARP support, MPLS support, packet filtering, IPv6 support, Zero Configuration Technology, Virtual Route Redundancy Protocol (VRRP) support, Quality of Service (QoS), Rapid Ring Protection Protocol (RRPP) support, Endpoint Admission Defense (EAD), IPv4 support, Intelligent Resilient Framework Technology (IRF), In-Service Software Upgrade (ISSU), Virtual Private LAN Service (VPLS), Virtual Extensible LAN (VXLAN), Ethernet Virtual Private Network (EVPN), Software Defined Networking (SDN), policy based routing, Support Operations, Administration, and Maintenance (OAM) mechanism, Graceful Insertion and Removal (GIR) mode, DDoS Protection, mDNS, Web authentication, Border Gateway Protocol (BGP) |
| Compliant Standards | IEEE 802.3, IEEE 802.1x |
| RAM | 4 GB (max) |
| Flash Memory | 4 GB (max) |
Expansion / Connectivity
| Interfaces | 2 x management ¦ 1 x serial (RS-232C) ¦ 1 x modem ¦ 1 x LAN management ¦ 1 x USB |
| Expansion Slots | 6 (total) / 6 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 8 (max) |
Power
| Power Device | Internal power supply (not installed) |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
