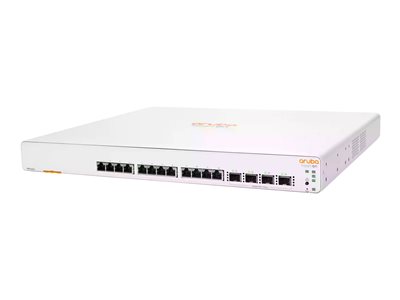

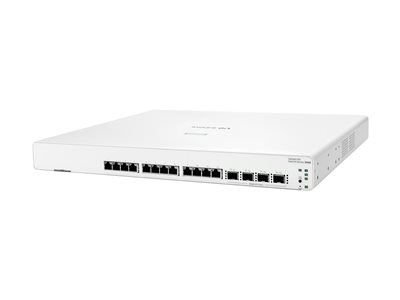

ARUBA ION 1960 12XT 4XF S/W 220V
ARUBA ION 1960 12XT 4XF S/W 220V
- Price:
$1,429.99
- Availability:
- Mfr #: JL805A#B2E
- UNSPSC #: 43201601
- Item #: 009577695
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Rack Mounting Kit | Included |
| MTBF | 88.8 years |
| Compliant Standards | Plug and Play, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, EN 62368-1, EN 62368-1 Second Edition, EN 62368-1 Third Edition, IEC 62368-1, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA-C22.2 No. 62368-1, EN 60825-1 Class 1, IEC 60825-1 Class 1, EN 55032/CISPR 32 Class A, FCC CFR47 Part 15 A, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN32 Class A, AS/NZS CISPR 32 Class A, CISPR 35, EN 55035, KN35, EN 61000-3-2, IEC 61000-3-2, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, EN 61000-3-3, IEC 61000-3-3 |
Dimensions & Weight
| Width | 17.4 in |
| Depth | 13.8 in |
| Height | 1.7 in |
| Weight | 9.48 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 - 95% (non-condensing) |
General
| Device Type | Switch - 12 ports - L2+ - smart - stackable |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+ |
| Performance | Latency (100 Mbps): 7.4 µs ¦ Latency (1 Gbps): 4.2 µs ¦ Latency (10 Gbps): 1.1 µs ¦ Throughput: 238 Mpps ¦ Switching capacity: 320 Gbps |
| Capacity | IPv4 routing table entries: 512 ¦ IPv6 routing table entries: 512 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2, static IPv4 routing |
| Remote Management Protocol | HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, RADIUS, SCP, TFTP, RMON |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS |
| Features | Cloud managed, ACL support, VLAN support, DoS attack prevention, DHCP client, firmware upgradable, SNTP support, QoS, DSCP prioritization, CoS, WRR, auto-uplink (auto MDI/MDI-X), auto-negotiation, flow control, MSTP support, RSTP support, STP support, auto voice VLAN, port mirroring, BPDU Filter, loop protection, IGMP snooping, MLD snooping, TPM, LLDP-MED, port based access control, Port Security, DHCP snooping, IP source guard, ARP filtering, Unicast Storm Control, Broadcast Storm Control, Multicast Storm Control, Energy Efficient Ethernet, DHCP relay, DHCP server, IPv6 support, ingress rate limiting, DNS client, protected ports, dual image support, ICMP, Cable Diagnostics Function |
| Compliant Standards | IEEE 802.1x, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1t, IEEE 802.3ac |
| Processor | 1: 2 GHz |
| Status Indicators | Port status |
Expansion / Connectivity
| Interfaces | 12 x 10Gbit LAN RJ-45 ¦ 4 x 10Gbit LAN SFP+ |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 60 Watt |
