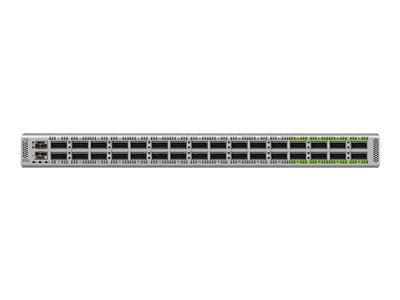

NEXUS 9300 SERIES 32P 400G QSFP-DD
NEXUS 9300 SERIES 32P 400G QSFP-DD
- Price:
$29,349.99
- Availability:
- Mfr #: N9K-C9332D-GX2B
- UNSPSC #: 43222612
- Item #: 009586939
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, GB 4943, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN 61000-4, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 22.9 in |
| Height | 1.7 in |
| Weight | 28 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
General
| Device Type | Switch - 32 ports - L3 |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 400 Gigabit Ethernet |
| Ports | 32 x 400 Gigabit QSFP-DD |
| Performance | Throughput: 12.8 Tbps ¦ Buffer memory: 120 Mbps |
| Capacity | Longest prefix match (LPM) entries (IPv4): 2000000 ¦ Host table entries (IPv4): 2000000 ¦ Multicast routes: 256000 ¦ IGMP groups: 32000 ¦ ACL entries (ingress): 24000 ¦ ACL entries (egress): 12000 ¦ Virtual interfaces (VLANs): 4096 ¦ VRF instances: 16000 ¦ ECMP paths: 64 ¦ Port channels: 2000 ¦ Maximum number of links in a port channel: 1000 ¦ SPAN sessions: 32 ¦ RPVST instances: 4000 ¦ HSRP groups: 490 ¦ MST instances: 64 ¦ NAT entries: 1000 |
| MAC Address Table Size | 256K entries |
| Routing Protocol | OSPF, RIP-2, BGP, EIGRP, PIM-SM, static IP routing, MSDP, static IPv6 routing, MPLS, RSVP |
| Features | MPLS support, STP support, PIM-SM snooping, DCBX support, ACL support, RDMA support, EIGRP Stub Routing, ECMP, DCB, MSDP, vPC technology, MACsec support, breakout capability, ECN, PFC, VXLAN, OSPF, SSM, EVPN, SDN, POAP, 5+1 redundant fans, PSI, ETS, AFD, ETRAP, DPP, RSVP-TE |
| RAM | 32 GB |
| Built-in Devices | 128 GB SSD |
Expansion / Connectivity
| Interfaces | 32 x 400Gbit LAN QSFP-DD ¦ 2 x 1/10Gbit LAN SFP+ ¦ 1 x serial (RS-232) ¦ 1 x USB ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x management SFP |
Power
| Power Device | Internal power supply - hot-plug |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 638 Watt |
