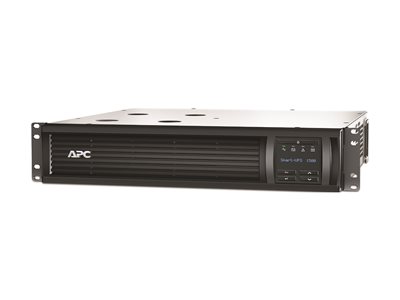

APC Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect TAA-Compliant
APC Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect TAA-Compliant
- Price:
$1,386.99
- Availability:
- Mfr #: SMT1500RM2UCUS
- UNSPSC #: 39121011
- Item #: 009590098
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Serial cable - external ¦ USB cable - external ¦ Power cable - integrated - 8 ft |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 150000 US Dollars |
| Features | Automatic Voltage Regulation (AVR), cold-start function, energy meter, LCD display, hot-swappable batteries, audible alarm, automatic self-test, LED indicators |
| Compliant Standards | RoHS, UL 1449, REACH, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, CSA |
| TAA Compliant | Yes |
Networking
| Remote Management Interface | Serial, USB, Ethernet |
Dimensions & Weight
| Width | 17 in |
| Depth | 18.8 in |
| Height | 3.4 in |
| Weight | 58.42 lbs |
Environmental Standards
| ENERGY STAR | Yes |
Dimensions & Weight (Shipping)
| Shipping Width | 23.2 in |
| Shipping Depth | 24 in |
| Shipping Height | 9.3 in |
| Shipping Weight | 70.81 lbs |
Software / System Requirements
| Software Included | Drivers & Utilities |
Sustainability Information
| ENERGY STAR | Yes |
Manufacturer Warranty
| Service & Support | Limited warranty - replace or repair - 3 years ¦ Limited warranty - batteries - 2 years |
Battery
| Quantity | 1 1 |
| Technology | Lead acid |
| Run Time (Up To) | 7.2 min at full load ¦ 335 min at 50 Watts ¦ 190 min at 100 Watts ¦ 92 min at 200 Watts ¦ 55.9 min at 300 Watts ¦ 37 min at 400 Watts ¦ 18.8 min at 600 Watts ¦ 14 min at 700 Watts ¦ 10.8 min at 800 Watts ¦ 8.6 min at 900 Watts ¦ 25.9 min at 500 Watts |
| Recharge Time | 3 hours |
| Transfer Time | 6 ms |
| Features | Maintenance free, sealed, leak-proof |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 45 dBA |
General
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Color | Black |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 144 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 6 x power NEMA 5-15R |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Power Capacity | 1 kW / 1440 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 680 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.3% at 100% Load, 97.2% at 25% Load, 98.2% at 50% Load, 98.3% at 75% Load |
Expansion / Connectivity
| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x SmartConnect - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
