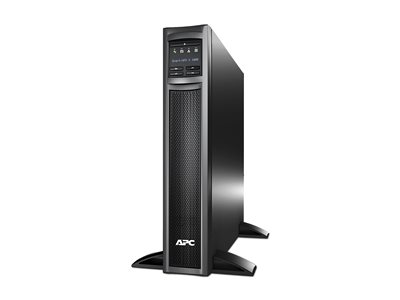

APC Smart-UPS X SMX1000C - UPS - 900 Watt - 1000 VA - TAA Compliant
APC Smart-UPS X SMX1000C - UPS - 900 Watt - 1000 VA - TAA Compliant
- Price:
$934.99
- Availability:
- Mfr #: SMX1000CUS
- UNSPSC #: 39121011
- Item #: 009595731
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Tower stand |
| Cables Included | Power cable - integrated |
| Rack Mounting Kit | Included |
| Features | Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, hot-swappable batteries, Green Function, EcoStruxure Ready, 2 switched outlet groups |
| Compliant Standards | cUL, UL 1449, UL 1778, FCC Part 15, RoHS, REACH |
| TAA Compliant | Yes |
Networking
| Remote Management Interface | Ethernet, USB, serial |
| Remote Management Protocol | DHCP, IPv4 |
Dimensions & Weight
| Width | 3.5 in |
| Depth | 19.3 in |
| Height | 17 in |
| Weight | 50.49 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
Battery
| Type | Expandable |
| Technology | Lead acid |
| Run Time (Up To) | 8 min at full load ¦ 19.7 min at half load ¦ 52.67 min at 200 Watts ¦ 17.85 min at 500 Watts ¦ 11.47 min at 700 Watts |
| Features | Maintenance free, sealed, leak-proof |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 45 dBA |
General
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
Environmental Standards
| ENERGY STAR | Yes |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 144 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Output Voltage | AC 120 V ± 2% - 50/60 Hz |
| Power Capacity | 900 Watt / 1000 VA |
| Surge Suppression | Yes |
| Surge Energy Rating | 540 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.86% at 100% Green mode (on-line) |
| Power Factor (PF) | 0.9 |
Expansion / Connectivity
| Interfaces | 1 x management (USB) ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45 ¦ 1 x management (Ethernet) - RJ-45 ¦ SmartConnect |
| Expansion Slots | 1 SmartSlot |
