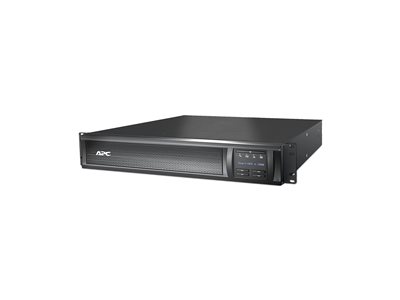

APC Smart-UPS X SMX1500RM2UCNC - UPS - 1350 Watt - 1440 VA - TAA Compliant

APC Smart-UPS X SMX1500RM2UCNC - UPS - 1350 Watt - 1440 VA - TAA Compliant

  • Price:
    $1,964.99
  • Availability:
  • Mfr #:  SMX1500RM2UCNCUS
  • UNSPSC #:  39121011
  • Item #:  009595738
  • Add to Shopping List
  • cnet cat code #:  10061401
Need Help? Contact Zones Online support at 800.408.9663
Miscellaneous
Included Accessories Tower stand
Cables Included Power cable - integrated USB cable - external Power cable - integrated - 8 ft
Rack Mounting Kit Included
Features Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, hot-swappable batteries, Green Function, 3 switched outlet groups, EcoStruxure Ready
Compliant Standards cUL, UL 1449, UL 1778, FCC Part 15, RoHS, REACH
TAA Compliant Yes
Networking
Remote Management Interface Ethernet, USB, serial
Remote Management Protocol DHCP, IPv4
Dimensions & Weight
Width 3.5 in
Depth 19.3 in
Height 17 in
Weight 54.72 lbs
Manufacturer Warranty
Service & Support Limited warranty - 3 years Limited warranty - batteries - 2 years
Battery
Type Expandable
Technology Lead acid
Run Time (Up To) 5 min at full load 14.8 min at half load 64.87 min at 200 Watts 24.47 min at 500 Watts 14.68 min at 700 Watts 8.98 min at 1000 Watts
Features Maintenance free, sealed, leak-proof
Environmental Parameters
Min Operating Temperature 32 F
Max Operating Temperature 104 F
Humidity Range Operating 0 - 95%
Sound Emission 45 dBA
General
Device Type UPS - rack-mountable / external
Height (Rack Units) 2U
Color Black
Environmental Standards
ENERGY STAR Yes
Power Device
UPS Technology Line interactive
Input Voltage AC 120 V
Input Voltage Range AC 82 - 143 V
Input Voltage Range (Adjustable) AC 75 - 154 V
Frequency Provided 47 - 63 Hz
Frequency Required 50/60 Hz
Input Connectors 1 x power NEMA 5-15P
Power Output Connectors Details 8 x power NEMA 5-15R
Output Voltage AC 120 V 47 - 63 Hz
Power Capacity 1350 Watt / 1440 VA
Output Waveform Sinewave
Surge Suppression Yes
Surge Energy Rating 645 Joules
Circuit Protection Circuit breaker
Efficiency 98.85% at 100% Green mode (on-line)
Power Factor (PF) 0.9
Expansion / Connectivity
Interfaces Management (USB) 1 x EPO (emergency power off) 1 x serial - RJ-45 1 x LAN - RJ-45 Management (Ethernet) - RJ-45
Expansion Slots 1 (total) / 1 (free) x SmartSlot
Dimensions & Weight (Shipping)
Shipping Width 9.7 in
Shipping Depth 24.4 in
Shipping Height 23.2 in
Shipping Weight 66.14 lbs
Software / System Requirements
Software Included APC PowerChute Business Edition
