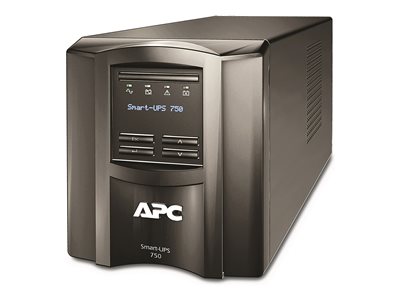

APC Smart-UPS 750 - UPS - 500 Watt - 750 VA - TAA Compliant
APC Smart-UPS 750 - UPS - 500 Watt - 750 VA - TAA Compliant
- Price:
$537.99
- Availability:
- Mfr #: SMT750CUS
- UNSPSC #: 39121011
- Item #: 009595746
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
Cables Included | USB cable - external ¦ Power cable 6 ft |
Equipment Protection Value | 150000 US Dollars |
Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, cold-start function, automatic self-test, hot-swappable batteries |
Compliant Standards | CSA, ICES-003, UL 1449, UL 1778, FCC Part 15 B, CSA C22.2 No. 107.1, RoHS, REACH |
TAA Compliant | Yes |
Networking
Remote Management Interface | Ethernet, USB |
Dimensions & Weight
Width | 5.4 in |
Depth | 14.5 in |
Height | 6.3 in |
Weight | 27.56 lbs |
Manufacturer Warranty
Service & Support | Limited warranty - replace or repair - 3 years ¦ Limited warranty - batteries - 2 years |
Battery
Quantity | 1 |
Technology | Lead acid |
Run Time (Up To) | 4.5 min at full load ¦ 16 min at half load |
Recharge Time | 3 hours |
Transfer Time | 6 ms |
Features | Maintenance free, sealed, leak-proof |
Environmental Parameters
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 0 - 95% |
Sound Emission | 41 dBA |
General
Device Type | UPS - external |
Color | Black |
Power Device
UPS Technology | Line interactive |
Input Voltage | AC 110/125 V |
Input Voltage Range | AC 82 - 144 V |
Input Voltage Range (Adjustable) | AC 75 - 154 V |
Frequency Provided | 50/60 Hz ± 3Hz |
Frequency Required | 50/60 Hz ± 3Hz |
Input Connectors | 1 x power NEMA 5-15P |
Power Output Connectors Details | 6 x power NEMA 5-15R |
Output Voltage | AC 110/125 V 50/60 Hz |
Power Capacity | 500 Watt / 750 VA |
Output Waveform | Sinewave |
Surge Suppression | Yes |
Surge Energy Rating | 540 Joules |
Circuit Protection | Circuit breaker |
Efficiency | 97.2% at 25% Load, 98.9% at 100% Load, 98.8% at 75% Load, 98.4% at 50% Load |
Expansion / Connectivity
Interfaces | 1 x SmartConnect ¦ 1 x USB |
Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Dimensions & Weight (Shipping)
Shipping Width | 10.9 in |
Shipping Depth | 19.6 in |
Shipping Height | 11.9 in |
Shipping Weight | 30.91 lbs |
