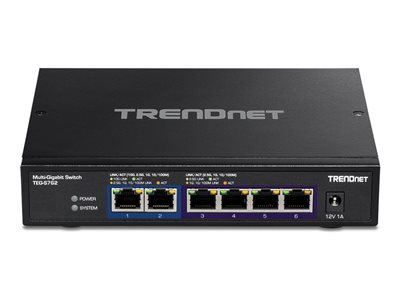

6PT 10G SWCH 4 X 2.5G RJ45 2 X 10G RJ45
6PT 10G SWCH 4 X 2.5G RJ45 2 X 10G RJ45
- Price:
$130.99
- Availability:
- Mfr #: TEG-S762
- UNSPSC #: 43222612
- Item #: 009609986
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | 379,884 hours |
| Compliant Standards | IC, FCC |
| TAA Compliant | Yes |
Dimensions & Weight
| Width | 7.1 in |
| Depth | 5.7 in |
| Height | 1.3 in |
| Weight | 5.14 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | Up to 95% (non-condensing) |
General
| Device Type | Switch - 6 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 2 x 10GBase-T + 4 x 2.5GBase-T |
| Performance | Switching capacity: 60 Gbps ¦ Forwarding rate (64-byte packets): 44.64 Mpps |
| Capacity | Buffer capacity (MB): 2 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Features | Store and forward, half duplex mode, full duplex mode, Jumbo Frames support, fanless |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| RAM | 2 MB |
Expansion / Connectivity
| Interfaces | 2 x 10GBase-T RJ-45 ¦ 4 x 2.5GBase-T RJ-45 |
Power
| Power Device | External power adapter |
| Power Provided | 12 V - 1 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 11.9 Watt |
