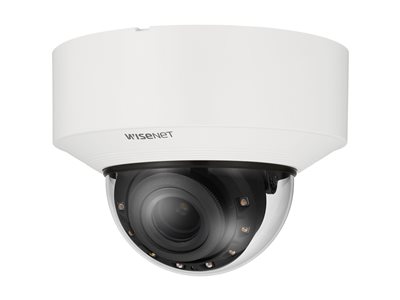

6MP OUTDOOR NETWORK AI IR DOME CAMERA
6MP OUTDOOR NETWORK AI IR DOME CAMERA
- Price:
$1,200.99
- Availability:
- Mfr #: XNV-C8083R
- UNSPSC #: 43222631
- Item #: 009642074
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | USB |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP |
Miscellaneous
| Compliant Standards | NEMA Type 4X, IP67, IK10, IP66, IEEE 802.3af, IEEE 802.1x |
| Color | White, RAL 9003 |
Lens Construction
| Optical Zoom | 2.1 x |
| Focal Length | 4.4 mm - 9.3 mm |
| Lens Iris | F/1.3-2.15 auto iris (P-Iris) |
| Focus Adjustment | Manual |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 47.5 - 112.1 |
| Vertical Field of View (degree) | 26.6 - 58 |
| Diagonal Field of View (degree) | 54.6 - 137.5 |
Tilting
| Range (degree) | -45 to +75 |
Image Sensor
| Type | 6 MP CMOS 1/1.8" |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 6.3 in |
| Depth | 6.3 in |
| Height | 4.6 in |
| Weight | 3.2 lbs |
Camera
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal-proof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 3328 x 1872 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.04 lux - color - F1.3 - 30 IRE - shutter 1/30 sec ¦ 0.004 lux - B&W - F1.3 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 131 ft |
| Digital Video Capture Resolution | 3328 x 1872, 3072 x 1728, 2592 x 1944, 2688 x 1520, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Frame Rate (max) | 30 frames per second |
| RAM | 4 GB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), image flip, image mirror, Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Extreme Wide Dynamic Range (E-WDR), WiseNR II, Samsung Super Noise Reduction (SSNRV), Digital Image Stabilization (DIS), Defog, motion detection, Privacy Mask Function, auto gain control, auto white balance, Lens Distortion Compensation (LDC), anti-flicker, Hallway View, Object Detection, Intelligent Video Analysis (IVA), Defocus Detection, tamper-detection, Audio Detection, sound classification, shock detection, appearing / disappearing detection, direction detection, loitering detection, entrance / exit detection, Virtual Line detection, people counting, queue management, Heat Map, notification picture to FTP, notification picture to E-mail, trigger recording, Unicast Streaming, Multicast Streaming, digest authentication, user access log, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, WiseStream III support, WiseStream II support |
Panning
| Range (degree) | 0 to 360 |
Expansion / Connectivity
| Ports | USB - Micro-USB Type B ¦ Audio line-in/microphone ¦ Audio line out ¦ LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 10.8 Watt |
