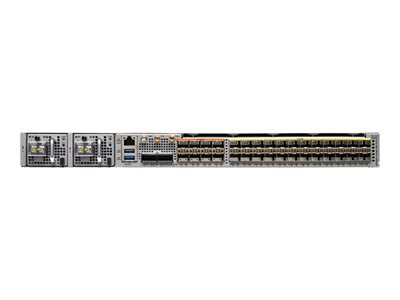

ELA NCS540-2X400G QSFP-DD+8X50G+24X25G
ELA NCS540-2X400G QSFP-DD+8X50G+24X25G
- Price:
$45,246.99
- Availability:
- Mfr #: N540-24Q8L2DD-SYS
- UNSPSC #: 43222609
- Item #: 009644314
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Dimensions & Weight
| Width | 17.3 in |
| Depth | 11.8 in |
| Height | 1.7 in |
| Weight | 12.79 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
General
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 25 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet, 200 Gigabit Ethernet, 50 Gigabit Ethernet |
| Performance | Performance: up to 600 Mpps |
| Network / Transport Protocol | IPv4, IPv6, RSVP, DHCP |
| Routing Protocol | OSPFv2, OSPFv3, IS-IS, IS-ISv6, BGP, OSPF, VRRP, PIM-SM, PIM-SSM, ECMP, MLDv2, IGMPv3, MPLS, mLDP |
| Remote Management Protocol | SNMP, NETCONF, gRPC, XML, JSON, GPB, YANG |
| Authentication Method | Secure Shell (SSH), TACACS+ |
| Features | Layer 3 switching, VRF, layer 2 switching, BD, EFP, Q-in-Q tunneling, VLAN Tagging, LAG, LACP, STP support, Jumbo Frames support, OSPF, IS-IS, BGP, multi-protocol support, ECMP, BFD, VRRP support, IRB, BVI, GRE, MPLS support, MPLS LER support, MPLS LSR support, LDP, BGP-LU, RSVP-TE, L2VPN support, T-LDP, EVPN VPWS, LFA, FFR, SR-ODN, SR-PCE, ZTP, 6 fans |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), ITU-T G.8032, MEF 3.0, AS/NZS 60950-1, AS/NZS CISPR22 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2004/108/EC, Directive 2006/95/EC, EN 300386 Class A, EN 55022 Class A, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55024, ETS/EN 300 019 1.2, ETS/EN 300 019 2.3, ETS/EN 300 019 3.2, ETS/EN 300 119 Part 4, ETS/EN 300 753, FCC CFR47 Part 15 A, GB 4943, GR-1089-CORE, GR-63-CORE, ICES-003 Class A, IEC 60950-1 Second Edition, KN 61000-4, KN22 Class A, RoHS 6/6, UL 60950-1 Second Edition, VCCI Class A |
| Processor | 1.5 GHz |
| RAM | 16 GB |
| Hard Drive | 64 GB |
| Built-in Devices | GNSS receiver |
Expansion / Connectivity
| Interfaces | 24 x 1Gb Ethernet / 10Gb Ethernet / 25Gb Ethernet ¦ 8 x 10Gb Ethernet / 25Gb Ethernet / 50Gb Ethernet ¦ 2 x 400Gb Ethernet - QSFP56-DD |
Power
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Installed Qty | 2 (max) |
