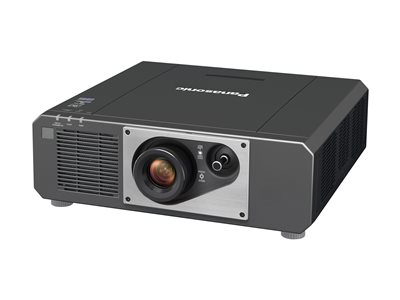

5,200 LUMENS, 4K, 1DLP, LASER PROJECTOR, BLACK
5,200 LUMENS, 4K, 1DLP, LASER PROJECTOR, BLACK
- Price:
$5,567.99
- Availability:
- Mfr #: PT-FRQ50BU7
- UNSPSC #: 45111609
- Item #: 009647747
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Projector
| Brightness | 5200 lumens |
| Contrast Ratio | 20000:1 |
| Image Size | 40.2 in - 300 in |
| Throw Ratio | 1.46 - 2.93:1 |
| Uniformity | 90 % |
| Resolution | 4K - 3840 x 2160 |
| Native Aspect Ratio | 16:9 |
| Lamp Type | Laser diode |
| Lamp Life Cycle | Up to 20000 hour(s) - normal mode ¦ Up to 24000 hour(s) - economic mode |
| Controls & Adjustments | Keystone correction, lens shift dial (horizontal), lens shift dial (vertical) |
| Features | 1-chip DLP technology, 360° projection, High-bandwidth Digital Content Protection System (HDCP), Deep Color, Digital Link, PJlink, art-net compatible, SOLID SHINE Laser Technology, Quad Pixel Drive, 24/7 operation, Rich Color Enhancer, Remote Preview Lite, Multi-Laser Drive Engine, Failover Circuitry, Daylight View 3 Technology, Multi-Unit Brightness Control, Quick On/Off, Cloning Function, Detail Clarity Processor 4, Crestron Connected, DICOM Simulation Mode |
Miscellaneous
| Security Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | CEC, ISO/IEC 21118:2012 |
Dimensions & Weight
| Width | 19.6 in |
| Depth | 19.4 in |
| Height | 6.6 in |
| Weight | 35.49 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Sound Emission | 35 dB |
| Sound Emission (Economic Mode) | 28 dB |
General
| Device Type | DLP projector - 4K |
| Networking | Ethernet |
Video Input
| Video Interfaces | HDMI, VGA, DIGITAL LINK |
| Video Modes | 4K/60p |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
Lens
| Focus Type | Manual |
| Lens Aperture | F/2.0-3.4 |
| Zoom Type | Manual |
| Zoom Factor | 2x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -40 / +40 |
| Horizontal Keystone Correction | -20 / +20 |
| Lens Shift Type | Manual |
| Lens Shift Direction | Horizontal, vertical |
| Vertical Lens Shift | 71% / 48% |
| Horizontal Lens Shift | 34% / 27% |
Expansion / Connectivity
| Interfaces | 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-in/out - mini-phone stereo 3.5 mm x 2 ¦ 1 x serial RS-232C input - 9 pin D-Sub (DB-9) ¦ 1 x network - RJ-45 ¦ 1 x DIGITAL LINK - RJ-45 ¦ 1 x USB - 4 pin USB Type A |
Dimensions & Weight (Shipping)
| Shipping Width | 27.3 in |
| Shipping Depth | 23.9 in |
| Shipping Height | 12.2 in |
| Shipping Weight | 47.18 lbs |
Power
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 480 Watt |
Software / System Requirements
| Software Included | Logo Transfer Software, Multi Projector Monitoring & Control Software, Early Warning Software |
