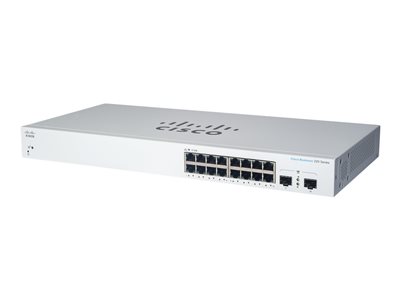

CBS220 SMART 16-PORT GE, POE, 2X1G SFP
CBS220 SMART 16-PORT GE, POE, 2X1G SFP
- Price:
$355.99
- Availability:
- Mfr #: CBS220-16P-2G-NA
- UNSPSC #: 43222612
- Item #: 009144220
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Rack Mounting Kit | Included |
| MTBF | 611,476 hours |
| Compliant Standards | UL 60950, CSA 22.2, FCC CFR47 Part 15 A, C-Tick |
| Localization | United States, Canada, Mexico, Colombia, Chile, Latin America |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 8 in |
| Height | 1.7 in |
| Weight | 6.68 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
General
| Device Type | Switch - 18 ports - smart |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 130 W |
| Performance | Forwarding performance (64-byte packet size): 26.78 Mpps ¦ Switching capacity: 36 Gbps |
| Capacity | MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 4.1 |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Remote Management Protocol | RSTP, ICMP, RADIUS, TACACS+, SSH, SCP, SSH-2, HTTPS, HTTP, Telnet, CLI, SNMP 1, SNMP 2c, SNMP 3, RMON, TFTP, DHCP |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Features | QoS, 802.1x authentication, ACL support, BPDU Guard, DoS attack prevention, Energy Efficient Ethernet, MAC address filtering, LACP support, VLAN support, VLAN management, Guest VLAN, auto voice VLAN, GVRP, HOL Blocking Prevention, loopback detection, Auto MDIX, DSCP support, UDP, TCP support, Port Security, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, STP loop guard, WRR, ToS, DiffServ support, IGMP snooping, NDP, DAD, Telnet server, DHCP client, CDP, LLDP support, MIB, port mirroring, dual firmware images, BOOTP support, Cable Diagnostics Function, Syslog support, LLDP-MED, fanless |
| Compliant Standards | IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | System, link/activity/speed |
Expansion / Connectivity
| Interfaces | 16 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-X SFP uplink |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 160.2 Watt |
