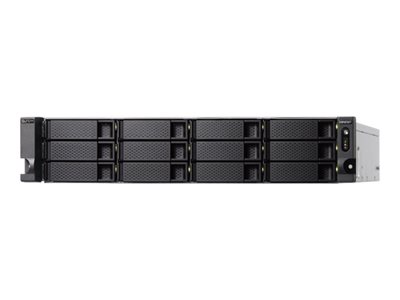

QNAP 2U 18 BAY (12 X 3.5 + 6 X 2.5 SATA 6GBPS) QTS HERO NAS/ISCSI IP-S
QNAP 2U 18 BAY (12 X 3.5 + 6 X 2.5 SATA 6GBPS) QTS HERO NAS/ISCSI IP-S
- Price:
$3,737.99
- Availability:
- Mfr #: TS-H1886XU-RP-R2-D1622-32G-US
- UNSPSC #: 43201800
- Item #: 009692576
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Processor / Memory
| Processors Installed | 1 x Intel Xeon D-1622 2.6 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 3.2 GHz |
| RAM | 32 GB (installed) / 128 GB (supported) - DDR4 |
| Features | ECC, unbuffered |
| Flash Memory Installed | 5 GB |
Miscellaneous
| Cables Included | 1 x network cable |
| Features | Audible alarm, dual boot, built-in 3 cooling fans, Secure Erase |
| Compliant Standards | TLS v1.1, TLS v1.0, TLS v1.2, TLS v1.3 |
| Included Accessories | 48 x flat head screws (for 3.5" HDD), 64 x flat head screws (for 2.5" HDD), 2 x power cables |
Networking
| Data Link Protocol | 2.5GbE, 10 GigE optical |
| Network / Transport Protocol | IPv4, IPv6, DDNS |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, SSH, Telnet |
| Network Services Compatibility | Microsoft CIFS, FTP, Apple File Protocol (AFP), Server Message Block (SMB), Web-based Distributed Authoring and Versioning (WebDAV) |
| Features | Single Root I/O Virtualization (SR-IOV), wake on LAN (WOL), Jumbo Frames support, VJBOD Cloud, FTP server, file station, WORM (Write Once Read Many protection), Access Control List (ACL) support, port trunking, VLAN support, DHCP server, firewall protection, Qsync, Qsirch, QuMagie, VPN support, LDAP support, SQL Server, RADIUS support, Qfiling, QmailAgent, QuWAN, Q'center (NAS CMS), anti-virus protection |
| Encryption Algorithm | AES-NI |
Storage Controller
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
General
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 18 (max) |
| Width | 19 in |
| Depth | 21.6 in |
| Height | 3.5 in |
| Weight | 28.06 lbs (without HDD) |
| Localization | United States |
Expansion / Connectivity
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" ¦ 6 (total) / 6 (free) x hot-swap - 2.5" |
| Expansion Slots | 1 (total) / 1 (free) x PCI Express 2.0 x4 ¦ 1 (total) / 0 (free) x PCI Express 3.0 x8 ¦ 1 (total) / 1 (free) x PCI Express 3.0 x4 |
| Interfaces | 4 x 2.5 Gigabit Ethernet - RJ-45 ¦ 2 x USB 3.2 Gen 1 - Type A ¦ 2 x Ethernet 10Gb - SFP+ |
Dimensions & Weight (Shipping)
| Shipping Weight | 41.2 lbs |
Power
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 117.92 Watt |
| Power Provided | 550 Watt |
Software / System Requirements
| Storage Operating System | QNAP QuTS hero h5.0.0 |
| OS Required | Apple MacOS X 10.10 or later, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, Ubuntu 14.04, IBM AIX 7, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
