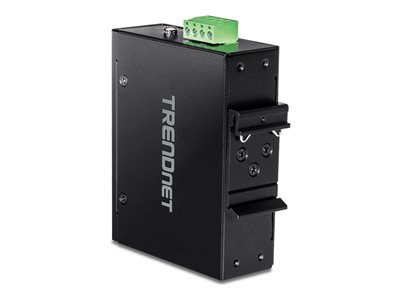

95W 2-PORT INDUSTRIAL 2.5G POE+ INJECTOR
95W 2-PORT INDUSTRIAL 2.5G POE+ INJECTOR
- Price:
$215.99
- Availability:
- Mfr #: TI-IG290
- UNSPSC #: 44103116
- Item #: 009699145
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Wall mounting bracket, DIN-rail brackets |
| MTBF | 716,685 hours |
| Features | Wall mountable, fanless, metal housing, full duplex support, half duplex support, grounding point, LED indicators, overload protection, auto negotiating, 2 kV surge protection, 8 kV ESD protection (Air), 6 kV ESD protection (Contact), 180W PoE budget |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt, FCC, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30 |
| TAA Compliant | Yes |
Dimensions & Weight
| Width | 1.2 in |
| Depth | 3.2 in |
| Height | 4.1 in |
| Weight | 6 oz |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
General
| Device Type | PoE injector - DIN rail mountable |
| Enclosure Type | Wall-mountable |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
Power Device
| Input Voltage Range | DC 52 - 56 V |
| Input Connectors | 2 x 4 pin terminal block |
| Power Output Connectors Details | 2 x RJ-45 |
| Power Capacity | 95 Watt |
| Surge Suppression | Yes |
Expansion / Connectivity
| Interfaces | 2 x 1/2.5 Gigabit LAN - RJ-45 |
