FEATURING LIGHTFINDER 2.0 FORENSIC WDR
FEATURING LIGHTFINDER 2.0 FORENSIC WDR
- Price:
$978.99
- Availability:
- Mfr #: 02329-001
- UNSPSC #: 45121603
- Item #: 009699190
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Drill hole template, Resitorx TR20 screw bit, terminal block connectors, cable gaskets, connector guard |
| Compliant Standards | PVC-free, BFR-free, CFR free, IEEE 802.3af, IEEE 802.3at, EN 50121-4, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KN32 Class A, KN35, RCM, AS/NZS CISPR 32 Class A, VCCI Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC/EN 62471, IS13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP52, IEC/EN 62262 IK10, NIST SP500-267 |
| Color | White |
Lens Construction
| Type | Vari-focal |
| Optical Zoom | 2.7 x |
| Focal Length | 3 mm - 8 mm |
| Lens Iris | F/1.3 manual iris |
| Min Focus Distance | 3.3 ft |
| Horizontal Field of View (degree) | 40 - 104 |
| Vertical Field of View (degree) | 29 - 74 |
Tilting
| Range (degree) | -10 to +80 |
Panning
| Range (degree) | -190 to +190 |
Software / System Requirements
| Software Included | AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user license, AXIS Companion, AXIS Camera Station |
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv6, HTTPS, IPv4, USGv6, ICMP, HTTP, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, DNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT, Syslog, Zeroconf |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Image Sensor
| Type | 5 MP CMOS 1/2.7" |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
General

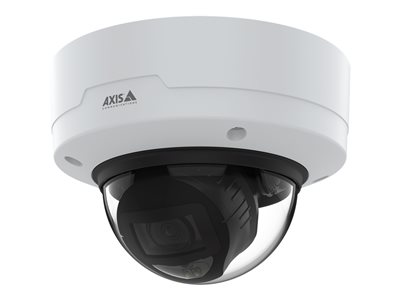

| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Audio Formats | LPCM, AAC-LC, G.711, PCM, ADPCM, G.726, OPUS |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 5.9 in |
| Depth | 5.9 in |
| Height | 4.2 in |
| Weight | 28.22 oz |
| Localization | English, German, French, Spanish, Italian, Russian, Chinese (simplified), Japanese, Korean, Portuguese, Polish, Chinese (traditional) / Argentina, Australia, Brazil, China, Europe, Japan, Korea, United Kingdom, United States |
Camera
| Type | Color - Day&Night - fixed - indoor - vandal-proof |
| Digital Video Format | H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/33500 sec |
| Minimum Illumination | 0.13 lux - color - F1.3 - 50 IRE ¦ 0 lux - IR - F1.3 |
| Infrared LEDs | Yes |
| Infrared Distance | 131 ft |
| Digital Video Capture Resolution | 160 x 90 |
| Frame Rate (max) | 30 frames per second |
| Supported Image Formats | JPEG (Motion photos) |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Lightfinder 2.0 technology, Forensic WDR, OptimizedIR, Zipstream technology, remote zoom, remote focus, Axis Edge Vault, secure boot, signed firmware, Variable Bitrate (VBR), Multi-Bitrate (MBR), Adaptive Bitrate (ABR), multi-streaming, digital PTZ function, HTTPs encryption, defogging, day shift, night shift, polycarbonate housing |
Expansion / Connectivity
| Ports | LAN/power - RJ-45 ¦ Digital input/output - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | PoE Class 3 |
| Power Device | 6.4 Watt |
