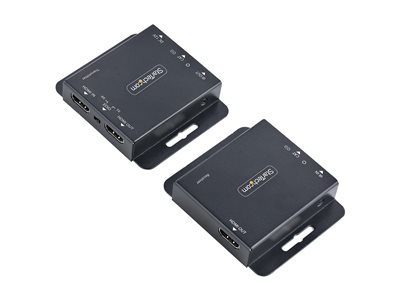

HDMI EXTENDER OVER CAT6 E-THERNET, 4K 30HZ, IR EXT
HDMI EXTENDER OVER CAT6 E-THERNET, 4K 30HZ, IR EXT
- Price:
$136.99
- Availability:
- Mfr #: EXTEND-HDMI-4K40C6P1
- UNSPSC #: 43201559
- Item #: 009714500
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | IR receiver, IR blaster extension cable |
| Compliant Standards | RoHS, WEEE, RCM |
Networking
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.2 Gbps |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Power, link |
| Features | 7.1 channel audio support |
Dimensions & Weight
| Width | 2.7 in |
| Depth | 2.2 in |
| Height | 0.7 in |
| Weight | 4.59 oz |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
General
| Device Type | Video/audio extender |
| Form Factor | External |
| Color | Black |
Expansion / Connectivity
| Interfaces | 2 x HDMI (local unit) female ¦ 1 x network (local unit) - RJ-45 female ¦ 1 x audio (local unit) - phone 3.5 mm female ¦ 1 x HDMI (remote unit) female ¦ 1 x network (remote unit) - RJ-45 female ¦ 1 x audio (remote unit) - phone 3.5 mm female |
Dimensions & Weight (Shipping)
| Shipping Width | 7.9 in |
| Shipping Depth | 4.4 in |
| Shipping Height | 3 in |
| Shipping Weight | 17.64 oz |
Power
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Voltage Required | AC 100-240 V |
