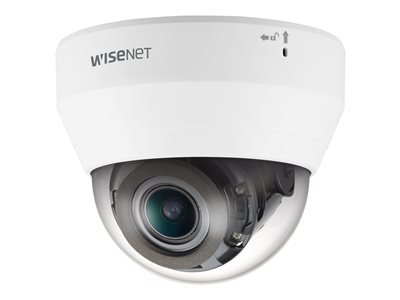

4MP IR DOME
4MP IR DOME
- Price:
$276.99
- Availability:
- Mfr #: QND-7012R
- UNSPSC #: 46171610
- Item #: 009719082
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, PIM-SM, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
Miscellaneous
| Compliant Standards | IEEE 802.1af |
| Color | White, RAL 9003 |
Lens Construction
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/2.0 |
| Horizontal Field of View (degree) | 107.5 |
| Vertical Field of View (degree) | 59.7 |
| Diagonal Field of View (degree) | 122 |
Tilting
| Range (degree) | 0 to 67 |
Image Sensor
| Type | 4 MP CMOS 1/3" |
Environmental Parameters
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 95% RH |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Audio Formats | G.726, ADPCM, G.711 |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 4.3 in |
| Depth | 4.3 in |
| Height | 3.4 in |
| Weight | 8.99 oz |
Camera
| Type | Color - Day&Night - fixed |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2560 x 1440 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.15 lux - color - F2.0 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 66 ft |
| Video Capture | 2560 x 1440 @ 30 fps |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Automatic Tracing White (ATW), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream Smart Codec, WiseStream II support, Unicast Streaming, ONVIF (Profile T) support, direction detection, Virtual Line detection |
Panning
| Range (degree) | 0 to 350 |
Expansion / Connectivity
| Ports | Composite video ¦ LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 7.9 Watt |
