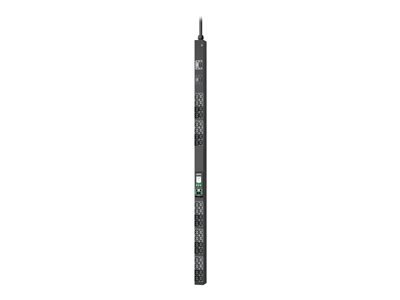

APC NetShelter Rack PDU Advanced - power distribution unit - switched metered outlet - 5 kW - 5000 VA
APC NetShelter Rack PDU Advanced - power distribution unit - switched metered outlet - 5 kW - 5000 VA
- Price:
$3,037.99
- Availability:
- Mfr #: APDU10151SM
- UNSPSC #: 39121017
- Item #: 009724565
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 10 ft |
| Features | Vertical orientation, LCD display, overload protection |
| Compliant Standards | EN 62368-1, UL 62368-1, UKCA, FCC Part 15 Subpart B, CSA C22.2 No. 62368-1 |
Networking
| Remote Management Interface | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP |
Dimensions & Weight
| Width | 2.2 in |
| Depth | 3 in |
| Height | 58.7 in |
| Weight | 17.2 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replace or repair - 3 years |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black |
Power Device
| Input Voltage | AC 200-240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Power Output Connectors Details | 20 x power IEC 60320 C13/C15 ¦ 20 x power IEC 60320 C13/C15/C19/C21 |
| Output Voltage | AC 208 V |
| Max Electric Current | 30 A |
| Power Capacity | 5 kW / 5000 VA |
Expansion / Connectivity
| Interfaces | Management (Gigabit Ethernet) - RJ-45 ¦ Cascading - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 8.2 in |
| Shipping Depth | 4.6 in |
| Shipping Height | 67.7 in |
| Shipping Weight | 21.61 lbs |
