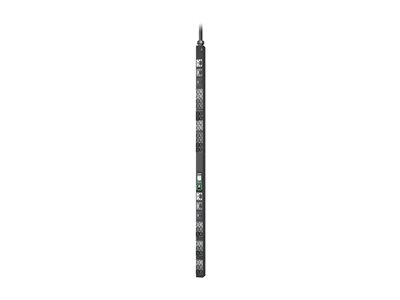

APC NETSHELTER RACK PDU ADVANCED, SWITCHED, 3PH, 17.3KW, 208V, 60A, 46
APC NETSHELTER RACK PDU ADVANCED, SWITCHED, 3PH, 17.3KW, 208V, 60A, 46
- Price:
$3,868.99
- Availability:
- Mfr #: APDU10452SW
- UNSPSC #: 39121017
- Item #: 009724570
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 6 ft |
| Features | Vertical orientation, color-coded, LCD display, overload protection, cascadable, circuit/breaker current monitoring, alternating phase/circuits, Hydraulic-Magnetic breakers, environmental sensor ready |
| Compliant Standards | FCC Part 15 B, RoHS, EN 62368-1, CSA C22.2 No. 62368-1 |
Networking
| Remote Management Interface | Ethernet 10/100, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP, HTTP, HTTPS |
Dimensions & Weight
| Width | 2.2 in |
| Depth | 3 in |
| Height | 71.9 in |
| Weight | 24.47 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replace or repair - 3 years |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% |
General
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 6 ft |
| Color | Black |
| Localization | Canada, United States |
Power Device
| Input Voltage | AC 200-240 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 460P9 |
| Power Output Connectors Details | 21 x power IEC 60320 C13/C15/C19/C21 ¦ 21 x power IEC 60320 C13/C15 |
| Output Voltage | AC 208 V |
| Max Electric Current | 60 A |
| Power Capacity | 17.3 kW / 17300 VA |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 2 x sensor ¦ 1 x USB - 4 pin USB Type A |
Dimensions & Weight (Shipping)
| Shipping Width | 10.3 in |
| Shipping Depth | 5.2 in |
| Shipping Height | 78 in |
| Shipping Weight | 31.08 lbs |
