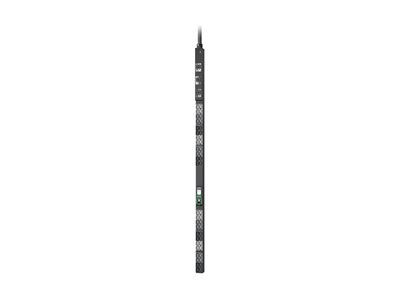

APC NETSHELTER RACK PDU ADVANCED, METERED, 17.3KW, 3PH, 415V, 30A, 530
APC NETSHELTER RACK PDU ADVANCED, METERED, 17.3KW, 3PH, 415V, 30A, 530
- Price:
$2,512.99
- Availability:
- Mfr #: APDU10350ME
- UNSPSC #: 39121017
- Item #: 009724717
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 6 ft |
| Features | Color-coded, LCD display, cascadable, Hydraulic-Magnetic breakers, environmental sensor ready, remote metered, overload protection |
| Compliant Standards | CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 B, UKCA, UL 62368-1, RoHS, EU RoHS, China RoHS, WEEE, IEC 62053-21 |
Networking
| Remote Management Interface | Ethernet 10/100/1000, Ethernet 10/100 |
Dimensions & Weight
| Width | 2.2 in |
| Depth | 3 in |
| Height | 70.1 in |
| Weight | 18.52 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replace or repair - 3 years |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 6 ft |
| Color | Black |
Power Device
| Input Voltage | AC 400/415 V |
| Input Voltage Range | AC 346 - 415 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 530P6 |
| Power Output Connectors Details | 24 x power IEC 60320 C13/C15/C19/C21 ¦ 24 x power IEC 60320 C13/C15 |
| Output Voltage | AC 240 V |
| Max Electric Current | 30 A |
| Power Capacity | 17.3 kW / 17300 VA |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ Sensor ¦ Cascading |
Dimensions & Weight (Shipping)
| Shipping Width | 10.3 in |
| Shipping Depth | 5.2 in |
| Shipping Height | 78 in |
| Shipping Weight | 25.13 lbs |
