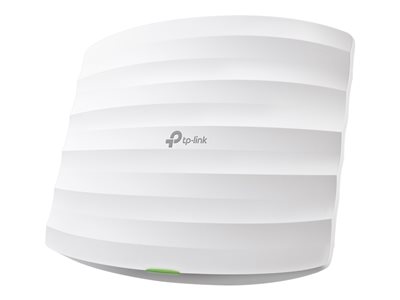

AC1750 Wireless Dual Band Ceiling Mount
AC1750 Wireless Dual Band Ceiling Mount
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Wall mounting kit, ceiling mounting kit |
| Compliant Standards | UL, FCC, RoHS |
Networking
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1750 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 2c, HTTP, HTTPS, CLI |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of configured SSIDs (2.4 Ghz): 8 ¦ Maximum number of configured SSIDs (5 Ghz): 8 |
| Features | Load balancing, VLAN support, Syslog support, manageable, E-mail alert, MAC address filtering, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Multiple SSID support, reset button, ceiling mountable, security lock slot (cable lock sold separately) |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2-PSK, WPA2-Enterprise |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Device Type | Wireless access point |
| Width | 7.1 in |
| Depth | 7.1 in |
| Height | 1.9 in |
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 |
Power
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Power Consumption Operational | 12.7 Watt |
Antenna
| Antenna | Internal |
| Antenna Qty | 6 |
| Directivity | Omni-directional |
| Gain Level | 4 dBi |
Software / System Requirements
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 10 |
