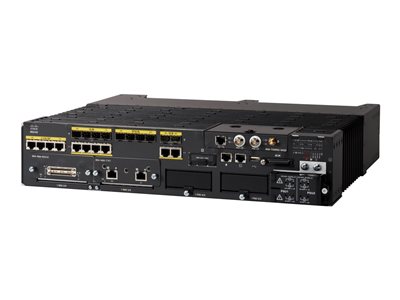

- Product Description Cisco Catalyst Rugged Series IR8340 - router - rack-mountable
- Device Type Router - 14-port switch (integrated)
- Enclosure Type Rack-mountable - 2U
- WAN Ports Qty 2
- Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance PoE power budget: 120 Watt
- Capacity IPSec tunnels: 20
- Network / Transport Protocol TCP/IP, L2TP, RSVP, NTP, IPSec, FTP, DHCP, DNS, RTP, HTTP, HTTPs, cRTP, Telnet
- Routing Protocol RIP-1, RIP-2, BGP, EIGRP, IGMPv2, HSRP, IGMP, VRRP, NHRP, OSPFv2, IGMPv3, EIGRP for IPv6, GRE, OSPFv3, Multiprotocol BGP, static IPv6 routing, policy-based routing (PBR), RIPng, Bidirectional Forwarding Detection (BFD), RSVP, MSTP, RSTP, STP, MGRE
- Remote Management Protocol SNMP, Telnet, HTTP, HTTPS, SSH, CLI, SCP, NETCONF, NTP, DHCP, RSTP, OMP
- Features NAT support, VPN support, IGMP snooping, DiffServ support, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), Per-VLAN Spanning Tree (PVST), Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), LACP support, LLDP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Forward Error Correction (FEC), Class of Service (CoS), IPFIX, Flexible NetFlow (FNF), 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), Control plane protection (CoPP), TrustSec support, Authentication, Authorization and Accounting (AAA), IGMP querier, Root Guard, Loop Guard, DNS client, High-speed Self Recovery (HSR), Synchronous Ethernet (SyncE), secure boot, Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, VLAN Trunking Protocol (VTP) v.3, Network-Based Application Recognition (NBAR), BPDU Guard, VLAN trunking, VLAN Trunking Protocol (VTP) v.2, Class-Based Traffic Shaping (CBTS), Class-Based Traffic Policing (CBTP), Class-Based Weighted Random Early Detection (CBWRED), Free Range Routing (FRR), Cisco Discovery Protocol (CDP), Trusted Anchor Module (TAM), Application Aware Routing (AAR), Secure Unique Device Identification (SUDI), Unidirectional Link Detection (UDLD), FirstNet ready, loop protection, Group Encrypted Transport (GETVPN)
- Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP)
- Dimensions (WxDxH) 17.3 in x 15 in x 3.5 in
- Manufacturer Warranty 1-year warranty
|
