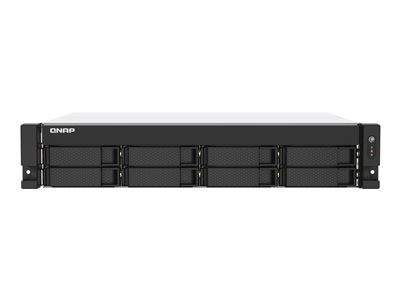

QNAP 2U 8-BAY SHORT-DEPTH RACKMOUNT NAS/ISCSI IP-S

Need Help? Contact Zones Online support at 800.408.9663

Processor / Memory

Processors Installed	1 x AMD Ryzen Embedded V1500B 2.2 GHz
Number of Cores	Quad-Core
Max Supported Qty	1
RAM	4 GB (installed) / 64 GB (supported) - DDR4
Flash Memory Installed	5 GB

Miscellaneous

Cables Included	1 x network cable
Features	Wake on LAN, built-in 3 cooling fans, Online RAID Level Migration (RLM), hardware encryption, scheduled power on/off, S.M.A.R.T. support, reset button, Secure Erase, dual boot, alarm buzzer, array roaming
Compliant Standards	FIPS 140-2, ISO 7779
Included Accessories	24 x flat head screws (for 2.5" HDD), 32 x flat head screws (for 3.5" HDD), power cable

Networking

Data Link Protocol	10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Network / Transport Protocol	PPTP, L2TP, IPSec, iSCSI, FTP, DHCP, SMB, DDNS, NFS, SFTP, HTTP, HTTPs, IPv4, IPv6
Remote Management Protocol	SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SFTP, DHCP, RADIUS
Network Services Compatibility	File Level Security (ACLs), DHCP, DDNS, Microsoft CIFS, FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), SFTP, Network File System v3 (NFS v3), Network File System v4 (NFS v4)
Performance	Concurrent connections (CIFS): 2000 - (with maximum memory)
Features	Firewall protection, hardware encryption, VPN support, LDAP support, VLAN support, wake on LAN (WOL), web server, backup server, download client, file sharing, anti-malware protection, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, DHCP server, FTP server, reset button, online RAID capacity expansion, online RAID level migration, dual firmware images, anti-virus protection, system log, Photo album server, event notification, file station, port trunking, black list, USB One Touch Copy, EXT4 file system, SSD trim, Windows ODX, white list, FXP support, hybrid backup sync, Qfiling, Qsirch, Q'center (NAS CMS), snapshot (folder and LUN), SQL Server, VJBOD Cloud, Qsync, QuMagie, Smart Fan, QmailAgent, QuWAN
Encryption Algorithm	SSL, TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3

Storage Controller

Type	RAID
Interface Type	SATA 6Gb/s
RAID Level	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

General

Device Type	NAS server
Host Connectivity	Gigabit Ethernet / 2.5 Gigabit Ethernet
Enclosure Type	Rack-mountable - 2U
Total Storage Capacity	0 GB
Installed Devices / Modules Qty	0 (installed) / 8 (max)
Width	19 in
Depth	11.7 in
Height	3.5 in
Weight	16.78 lbs ()
Built-in Devices	LED panel

Expansion / Connectivity

Expansion Bays	8 (total) / 8 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots	2 (total) / 1 (free) x SO-DIMM 260-pin � 2 (total) / 2 (free) x M.2 2280 � 1 (total) / 1 (free) x PCI Express 3.0 x8
Interfaces	2 x 2.5 Gigabit Ethernet - RJ-45 � 2 x USB 3.2 Gen 2 - Type A � 2 x USB 3.2 Gen 2 - Type C

Dimensions & Weight (Shipping)

Shipping Weight

22.49 lbs

Power

Security DVR

IP Cameras Supported	8
Compression Format	MPEG-4, H.264

Software / System Requirements

Storage Operating System	QNAP QuTS hero h5.0.0 / QTS 5.0.0
Software Included	McAfee AntiVirus
OS Required	Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11
