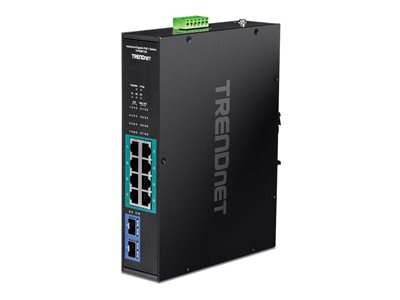

TRENDnets 10 Port Industrial Gigabit PoE DIN-Rail Switch -20-65C(-4-14
TRENDnets 10 Port Industrial Gigabit PoE DIN-Rail Switch -20-65C(-4-14
- Price:
$253.99
- Availability:
- Mfr #: TI-PGM102
- UNSPSC #: 43222612
- Item #: 009753956
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Removable terminal block |
| MTBF | 1,000,000 hours |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, LVD, IP30, NDAA |
| TAA Compliant | Yes |
Dimensions & Weight
| Width | 8.3 in |
| Depth | 6.3 in |
| Height | 1.8 in |
| Weight | 2.43 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
General
| Device Type | Switch - 10 ports |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 20 Gbps ¦ Forwarding rate (64-byte packets): 14.88 Mpps ¦ Buffer memory: 1.5 MB |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9KB |
| Features | Auto-negotiation, store and forward, half duplex mode, full duplex mode, over-current protection, rugged, Jumbo Frames support (up to 9000 bytes) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
Expansion / Connectivity
| Interfaces | 8 x Gigabit LAN RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-FX SFP |
Power
| Power Device | External power adapter (not included) |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Provided | 48 - 55 V |
| Power Consumption Operational | 6.38 Watt |
