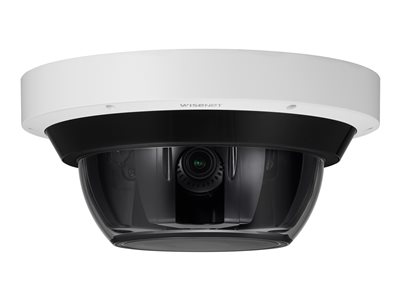

2MP X 4 outdoor Dome, PTRZ w/IR
2MP X 4 outdoor Dome, PTRZ w/IR
- Price:
$2,351.99
- Availability:
- Mfr #: PNM-9084RQZ1
- UNSPSC #: 46171610
- Item #: 009771285
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SSL, QOS, EAP, PIM-SM, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
Miscellaneous
| Included Accessories | PoE injector |
| Compliant Standards | NEMA Type 4X, IK10, IP66, IEEE 802.1x, IEEE 802.3bt |
| Color | White, RAL 9003 |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 3.1 x |
| Focal Length | 3.2 mm - 10 mm |
| Lens Iris | F/1.6-2.9 auto iris (DC) |
| Focus Adjustment | Automatic |
| Min Focus Distance | 1.6 ft |
| Horizontal Field of View (degree) | 33.2 - 109 |
| Vertical Field of View (degree) | 18.7 - 57.4 |
| Diagonal Field of View (degree) | 38 - 132 |
Tilting
| Range (degree) | 30 to 80 |
Image Sensor
| Type | 4x2MP CMOS 1/2.8" |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Form Factor | Dome |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Width | 12.4 in |
| Depth | 12.4 in |
| Height | 5.7 in |
| Weight | 11.46 lbs |
Camera
| Type | Color - Day&Night - pan / tilt / zoom - outdoor, indoor |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.05 lux - color - F1.6 ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 320 x 240, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 1920 x 1080, 640 x 360, 800 x 448 |
| Frame Rate (max) | 60 frames per second |
| RAM | 5 GB |
| Flash Memory | 1280 MB |
| Features | Backlight Compensation (BLC), digital noise reduction, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, notification picture to E-mail, notification picture to FTP, Audio Detection, Multicast Streaming, Defog, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, entrance / exit detection, appearing / disappearing detection, digest authentication, WiseStream II support, anti-flicker, IP address filtering, fog detection, motion detection, Unicast Streaming, Handover, ONVIF (Profile T) support, direction detection, Virtual Line detection, user access log, auto ICR, trigger recording |
Panning
| Range (degree) | 0 to 360 |
Expansion / Connectivity
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | DC 12 V / High PoE |
| Power Device | 30 Watt |
