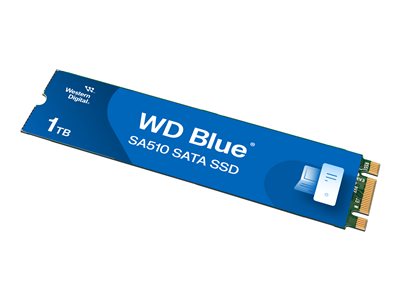

1TB WD BLUE SATA M.2
1TB WD BLUE SATA M.2
- Price:
$96.99
- Availability:
- Mfr #: WDS100T3B0B
- UNSPSC #: 43201830
- Item #: 009774926
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | FCC, UL, TUV, KC, BSMI, VCCI, Morocco |
| Enclosure Color | Blue |
Software & System Requirements
| Software Included | Acronis True Image, Dropbox Professional (free for 3 months) |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Environmental Parameters
| Vibration Tolerance (operating) | 5 gRMS @ 10-2000 Hz |
| Vibration Tolerance (non-operating) | 4.9 gRMS @ 7-800 Hz |
| Min Storage Temperature | -67 °F |
| Max Storage Temperature | 185 °F |
General
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | SATA 6Gb/s |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Weight | 0.17 oz |
Expansion & Connectivity
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | M.2 2280 |
Performance
| SSD Endurance | 400 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 520 MBps (write) |
| 4KB Random Read | 90000 IOPS |
| Maximum 4KB Random Write | 82000 IOPS |
| Maximum 4KB Random Read | 90000 IOPS |
| 4KB Random Write | 82000 IOPS |
Reliability
| MTBF | 1,750,000 hours |
Dimensions & Weight (Shipping)
| Shipping Weight | 1.41 oz |
Power
| Power Consumption | 60 mW (active) ¦ 1800 mW (read) ¦ 2000 mW (write) ¦ 36 mW (sleep) ¦ 12 mW (DevSleep) |
