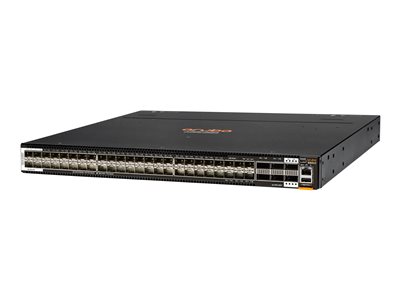

- Product Description HPE Aruba CX 8360-48Y6C v2 - switch - 48 ports - managed - rack-mountable
- Device Type Switch - 48 ports - L3 - managed
- Enclosure Type Front to back airflow rack-mountable 1U
- Subtype 25 Gigabit Ethernet
- Ports 44 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28
- Performance Switching capacity: 4.8 Tbps ¦ Switching capacity: 2.678 Mpps
- Capacity MAC addresses: 212992 ¦ IPv4 host table capacity: 145780 ¦ IPv6 host table capacity: 145780 ¦ IPv4 routes (Unicast): 606977 ¦ IPv6 routes (Unicast): 630784 ¦ IPv4 ACL entries (ingress): 65536 ¦ IPv6 ACL entries (ingress): 16384 ¦ MAC ACL entries (ingress): 65536 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192 ¦ VLANs supported: 4094 ¦ IGMP groups: 7000 ¦ MLD groups: 7000 ¦ IPv4 routes (Multicast): 7000 ¦ IPv6 routes (Multicast): 7000
- Jumbo Frame Support 9KB
- Routing Protocol OSPF, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, MSDP, static IPv6 routing, policy-based routing (PBR), RIPng, MLDv2, MLD, CIDR, BGP-MP
- Remote Management Protocol SNMP 1, SNMP 2, RMON, SNMP 3, TFTP, SSH, SSH 6, SFTP, ICMP
- Features Flow control, DHCP support, BOOTP support, ARP support, load balancing, VLAN support, IGMP snooping, Syslog support, port mirroring, IPv6 support, High Availability, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, MLD snooping, Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), Deficit Weighted Round Robin (DWRR), DHCP relay, Data Center Bridging (DCB), SNMP trap, dual firmware images, Neighbor Discovery Protocol (NDP), packet storm protection, Strict Priority (SP), Loopback, Ethernet Ring Protection Switching (ERPS), MACsec support, hot swappable 5 fans, Explicit Congestion Notification (ECN), Bridge protocol data unit (BPDU), ICMP Router Discovery Protocol (IRDP), 32MB packet buffer, Virtual Extensible LAN (VXLAN), Link Aggregation, RDMA over Converged Ethernet (RoCE) v2, Ethernet Virtual Private Network (EVPN), fast leave, Network Timing Protocol (NTP), Private VLAN, Cisco IOS IP Service-Level Agreements (IPSLA), IP forwarding support, IPv4 and IPv6 dual stack, DDoS Protection, IPv6 addressing, Virtual Switch Extension (VSX), Aruba Virtual Switching Framework (VSF), Rapid PVST+ (RPVST+), DNS support, UDP support, TCP support, Border Gateway Protocol (BGP), Unidirectional Link Detection (UDLD), IPv6 multicasting
- Compliant Standards IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by, IEEE 802.3cc
- Power AC 100-240 V (47 - 63 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17.4 in x 22 in x 1.7 in
- Weight 23.66 lbs
- Localization English / United States
- Manufacturer Warranty Limited lifetime warranty
|
