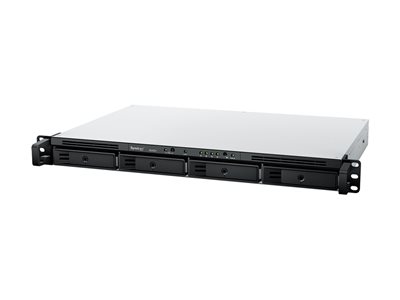

SYNOLOGY 4-BAY RACKMOUNT NAS RACKSTATION RS422+ (DISKLESS)
SYNOLOGY 4-BAY RACKMOUNT NAS RACKSTATION RS422+ (DISKLESS)
- Price:
$888.99
- Availability:
- Mfr #: RS422+
- UNSPSC #: 43201835
- Item #: 009908164
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Processor / Memory
| Processors Installed | 1 x AMD Ryzen Embedded R1600 2.6 GHz |
| Number of Cores | Dual-Core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 3.1 GHz |
| RAM | 2 GB DDR4 |
| Features | ECC |
Miscellaneous
| Features | Audible alarm, lockable tray, built-in 3 cooling fans, reset button, scheduled power on/off, wake on LAN |
| Compliant Standards | FCC, BSMI, CCC, EAC, VCCI, RCM, UKCA, KC, RoHS |
| Included Accessories | Accessory pack |
Networking
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Network / Transport Protocol | SMB, NFS, FTP, iSCSI, HTTP, HTTPs, PPTP, L2TP, SFTP, TCP/IP, IPSec, POP3, SMTP, IMAP, DNS |
| Remote Management Protocol | HTTP, HTTPS, SNMP, LDAP, Telnet, SSH, SFTP, TFTP, RADIUS |
| Network Services Compatibility | Server Message Block (SMB), Apple File Protocol (AFP), FTP, Web-based Distributed Authoring and Versioning (WebDAV), File Level Security (ACLs), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1), Microsoft CIFS, HTTP, HTTPS, Calendaring Extensions to WebDAV (CalDAV), Microsoft Active Directory (AD), SFTP, DNS |
| Features | Reset button, hardware encryption, Link Aggregation, failover protection, B-tree file system (Btrfs), EXT4 file system, wake on LAN (WOL), wake on WAN (WOW), SSD trim, Synology Hybrid RAID, Access Control List (ACL) support, High Availability, event log, LDAP support, iSCSI LUN clone/snapshot, surveillance station, VPN Server, file sharing, firewall protection, backup server, Rsync compatible, file station, FTP server, cloud station server, Alibaba Cloud OSS support, Backblaze B2 support, Baidu cloud support, Dropbox support, Google Drive support, hubiC support, MegaDisk support, Microsoft OneDrive support, OpenStack Swift-compatible, Tencent COS support, Yandex Disk support, Apple Time Machine compatible, PXE support, DNS server, RADIUS Server, anti-virus protection, white list, cloud backup, bandwidth control |
| Encryption Algorithm | AES-NI, SSL, TLS |
Storage Controller
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% RH |
| Sound Emission | 28.5 dBA |
General
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 1U |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Width | 18.8 in |
| Depth | 12.9 in |
| Height | 1.7 in |
| Weight | 9.66 lbs () |
| Built-in Devices | LED panel |
Expansion / Connectivity
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 2 (free) x PCI Express 3.0 x2 |
| Interfaces | 2 x Ethernet 1000Base-T - RJ-45 ¦ 1 x USB 3.2 Gen 1 - Type A ¦ 1 x serial (management) - DB-9 |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 100 Watt |
Security DVR
| IP Cameras Supported | 40 |
| Compression Format | H.264, H.265 |
| Image Resolution | 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160 |
Software / System Requirements
| Storage Operating System | Synology DiskStation Manager |
| Software Included | McAfee AntiVirus (Trial) |
| OS Required | Apple MacOS, Microsoft Windows, Linux |
