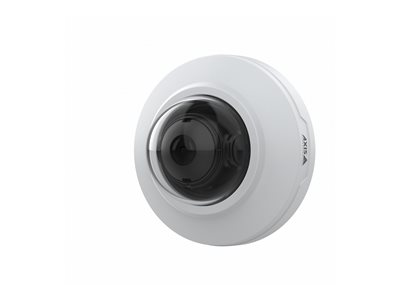

M3088-V IS AN ULTRA-COMPACT INDR FIX MIN
M3088-V IS AN ULTRA-COMPACT INDR FIX MIN
- Price:
$552.99
- Availability:
- Mfr #: 02375-001
- UNSPSC #: 45121603
- Item #: 009918257
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | IEEE 802.1x, TLS v1.3, IEEE 802.1ar, TLS v1.2, IEC/EN 60529 IP42, IEC/EN 62262 IK08, PVC-free, BFR-free, CFR free, IEEE 802.3at, IEEE 802.3af, ICES-3(A)/NMB-3(A), EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-003 Class A, VCCI Class A, KS C 9835, KS C 9832 Class A, AS/NZS CISPR 32 Class A, RCM, EN 62368-1, IEC 62368-1, UL 62368-1, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, NIST SP500-267 |
| Color | White, NCS S 1002-B |
Lens Construction
| Type | Fixed focal |
| Focal Length | 2.9 mm |
| Lens Iris | F/2.0 fixed iris |
| Horizontal Field of View (degree) | 109 |
| Vertical Field of View (degree) | 56 |
Tilting
| Range (degree) | -80 to +80 |
Panning
| Range (degree) | -175 to +175 |
Software / System Requirements
| Software Included | Windows decoder 1-user license, AXIS Companion, AXIS Camera Station |
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv6, IPv4, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, DNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DDNS, NTP, NTS, RTSP, RTCP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Image Sensor
| Type | 8 MP PS RGB CMOS 1/2.8" |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
General
| Camera Mount Type | Ceiling mount, wall mount |
| Connectivity Technology | Wired |
| Width | 4 in |
| Depth | 4 in |
| Height | 2.2 in |
| Weight | 5.29 oz |
| Localization | English, German, French, Spanish, Italian, Russian, Chinese (simplified), Japanese, Korean, Portuguese, Polish, Chinese (traditional) / Argentina, Australia, Brazil, China, Europe, Japan, Korea, United Kingdom, United States |
Camera
| Type | Color - Day&Night - fixed - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265, MPEG-H Part 2, MPEG-4 Part 10, AVC, HEVC |
| Max Digital Video Resolution | 3840 x 2160 |
| Exposure Range | 1/5 sec - 1/71500 sec |
| Minimum Illumination | 0.25 lux - color - F2.0 - 50 IRE ¦ 0.05 lux - B&W - F2.0 - 50 IRE |
| Digital Video Capture Resolution | 3840 x 2160, 320 x 240 |
| Frame Rate (max) | 15 frames per second |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Features | Infrared-cut filter, manual 175° rotation, deep learning processing unit (DLPU), Zipstream technology, Multi-Bitrate (MBR), Variable Bitrate (VBR), compression, multi view mode, color control, brightness control, sharpness control, contrast control, white balance, exposure control, motion-adaptive exposure, Wide Dynamic Range (WDR), dynamic text overlay, image mirror, Privacy Mask Function, 180° image rotation, 270° image rotation, 90° image rotation, digital PTZ function, IP address filtering, HTTPs encryption, Access Control, user access log, centralized certificate management, signed video, Axis Edge Vault, Axis device ID, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, AXIS Object Analytics, human detection, Vehicle Detection, Line Crossing Detection, Object Detection, Metadata, signed firmware, brute force delay protection, digest authentication, password protection, secure boot, secure keystore, NAS-Ready, IR Corrected lens |
Expansion / Connectivity
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | PoE Class 2 |
| Power Device | 3.6 Watt |
