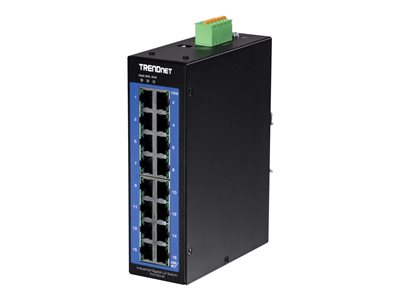

- Product Description TRENDnet TI-G160i-M - switch - 16 ports - managed - TAA Compliant
- Device Type Switch - 16 ports - managed
- Subtype Gigabit Ethernet
- Ports 16 x 10/100/1000
- Performance Switching capacity: 32 Gbps ¦ Forwarding performance (64-byte packet size): 23.8 Mpps
- Capacity VLAN groups: up to 256 ¦ Multicast groups: up to 256
- MAC Address Table Size 8K entries
- Jumbo Frame Support 10KB
- Routing Protocol IGMP
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI, RADIUS
- Features VLAN support, IGMP snooping, Syslog support, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, SNTP support, Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), reset button, fanless, LACP support, LLDP support, DHCP relay, Port Security, SNMP trap, built-in DIP switch, port isolation, Class of Service (CoS), Strict Priority (SP), tagged VLAN, 8KV ESD Protector, ONVIF support, 802.1x authentication, metal housing, per port bandwidth control, DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), shock-resistant, vibration-proof, Storm Control, ARP inspection, 6KV Surge protection, Management Information Base (MIB) II, DLF (Destination Lookup Failure), IGMP querier, Root Guard, Private VLAN, BPDU Filter, Weighted Round Robin (WRR), MAC based VLAN, loopback detection, Modbus compatible, traffic monitoring, BPDU Guard, queue scheduling support, TCP support, SMTP alerts
- Compliant Standards IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
- Power Redundancy Yes
- Dimensions (WxDxH) 2 in x 4.7 in x 6.3 in
- Weight 31.18 oz
- TAA Compliant Yes
- Manufacturer Warranty Limited lifetime warranty
|
