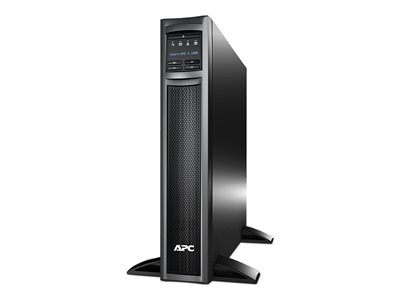

APC Smart-UPS X 1000VA Tower/Rack 120V with Network Card and SmartConn
APC Smart-UPS X 1000VA Tower/Rack 120V with Network Card and SmartConn
- Price:
$1,529.99
- Availability:
- Mfr #: SMX1000CNC
- UNSPSC #: 39121011
- Item #: 009989098
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Tower stand, rack mounting brackets |
| Cables Included | Power cable - integrated - 8 ft ¦ RS-232 cable - external ¦ USB cable - external ¦ Network cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 150000 US Dollars |
| Features | Audible alarm, emergency power off, LCD display, LED indicators, EcoStruxure Ready, 2 switched outlet groups |
| Compliant Standards | UL 1778, FCC, WEEE, cULus, IP20, EU RoHS |
Networking
| Remote Management Interface | Ethernet, USB, serial |
Sustainability Information
| ENERGY STAR | Yes |
Dimensions & Weight
| Width | 3.5 in |
| Depth | 19.3 in |
| Height | 17 in |
| Weight | 50.4 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 4 years ¦ Limited warranty - batteries - 3 years |
Battery
| Type | Expandable |
| Technology | Lead acid |
| Capacity | 345 Ah |
| Run Time (Up To) | 8.25 min at full load ¦ 21 min at half load |
| Recharge Time | 3 hours |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 40 dBA |
General
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
Environmental Standards
| ENERGY STAR | Yes |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 143 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Output Voltage | AC 120 V ± 2% - 50/60 Hz |
| Power Capacity | 900 Watt / 1000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 693 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.9% at 100% Load, 98.7% at 50% Load |
| Power Factor (PF) | 1.0 |
Expansion / Connectivity
| Interfaces | 2 x management (USB) ¦ 1 x USB ¦ 1 x serial - RJ-45 ¦ 1 x management (Ethernet) - RJ-45 ¦ 1 x SmartConnect - RJ-45 ¦ 1 x EPO (emergency power off) |
| Expansion Slots | 1 SmartSlot |
Dimensions & Weight (Shipping)
| Shipping Width | 9.7 in |
| Shipping Depth | 24.4 in |
| Shipping Height | 23.2 in |
| Shipping Weight | 60.23 lbs |
