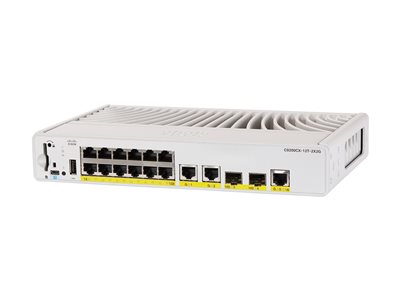

ELA CATALYST 9000 COMPACT SWITCH 12-PORT DATA ONLY ESSENTIALS
ELA CATALYST 9000 COMPACT SWITCH 12-PORT DATA ONLY ESSENTIALS
- Price:
$1,124.99
- Availability:
- Mfr #: C9200CX-12T-2X2G-E
- UNSPSC #: 43232900
- Item #: 010005239
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | 755,270 hours |
| Compliant Standards | Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
Dimensions & Weight
| Width | 10.6 in |
| Depth | 6.5 in |
| Height | 1.7 in |
| Weight | 3.99 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
General
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 1000Base-T + 3 x 1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | UPOE+ |
| Performance | Switching capacity: 120 Gbps ¦ Forwarding rate: 95.23 Mpps ¦ Packet buffer size: 6 MB |
| Capacity | Virtual networks: 16 ¦ IPv4 routes: 14000 ¦ Direct IPv4 routes: 10000 ¦ Indirect IPv4 routes: 4000 ¦ IPv4 routing entries: 4000 ¦ IPv6 routing entries: 2000 ¦ Multicast scale: 1000 ¦ QoS scale entries: 1000 ¦ ACL scale entries: 1600 ¦ Flexible NetFlow entries: 16000 ¦ VLAN IDs: 4096 ¦ PVST instances: 128 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, OSPFv3, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, CLI, NETCONF, RESTCONF, YANG |
| Encryption Algorithm | 256-bit AES |
| Features | Fanless, Cisco UADP 2.0, MACsec support, trustworthy systems, FNF, ZTP, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR, ACL support |
| Compliant Standards | IEEE 802.3bt, IEEE 802.3, IEEE 802.3at, IEEE 802.3af, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ae |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Built-in Devices | RFID tag |
| Status Indicators | Power |
Expansion / Connectivity
| Interfaces | 12 x 1000Base-T RJ-45 ¦ 2 x 1000Base-T RJ-45 ¦ 2 x 1/10GBase-X SFP+ uplink ¦ 1 x 1000Base-T RJ-45 UPOE+ - 60 W ¦ 1 x console (micro-USB) ¦ 1 x USB 2.0 |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
Power
| Power Device | External power adapter |
| Power Provided | 80 Watt |
| Voltage Required | AC 100-240 V |
Software / System Requirements
| Software Included | Cisco IOS Universal 17.8 |
