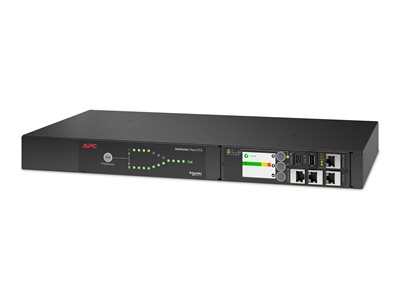

Rack ATS, 100/120V, 15A, 5-15 in, (10) 5-15R out
Rack ATS, 100/120V, 15A, 5-15 in, (10) 5-15R out
- Price:
$1,479.99
- Availability:
- Mfr #: AP4450A
- UNSPSC #: 43211501
- Item #: 010049392
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Mounting kit, rack mounting brackets |
| Cables Included | 2 x power cable - integrated - 1 in ¦ Serial cable - external |
| Rack Mounting Kit | Included |
| Features | Horizontal orientation, LED indicators, LCD display |
| Compliant Standards | PSE Mark, TÜV safety certification, VCCI Class A, REACH SvHC, EU RoHS, China RoHS, WEEE |
Networking
| Remote Management Interface | Ethernet 10/100/1000, USB |
| Remote Management Protocol | SNMP, CLI |
Dimensions & Weight
| Width | 17 in |
| Depth | 9.3 in |
| Height | 1.7 in |
| Weight | 9.7 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% |
General
| Device Type | Redundant switch - rack-mountable |
| Height (Rack Units) | 1U |
| Cord Length | 8 ft |
| Color | Black |
Power Device
| Input Voltage | AC 100/120 V |
| Input Voltage Margin | ± 10% |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power NEMA 5-15P |
| Power Output Connectors Details | 10 x power NEMA 5-15R |
| Output Voltage | AC 100/120 V |
| Max Electric Current | 15 A |
| Power Capacity | 1440 VA |
Expansion / Connectivity
| Interfaces | 1 x sensor ¦ 3 x LAN - RJ-45 ¦ 3 x USB - 4 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type B |
Dimensions & Weight (Shipping)
| Shipping Width | 23.6 in |
| Shipping Depth | 14 in |
| Shipping Height | 4.5 in |
| Shipping Weight | 13.6 lbs |
