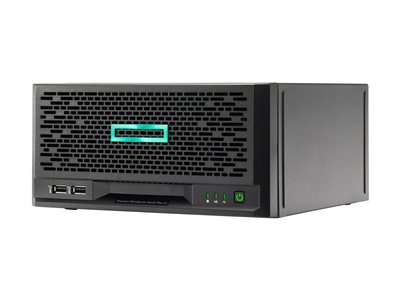

HPE ProLiant MicroServer Gen10 Plus v2 Performance 1 - ultra micro tower - Xeon E-2314 2.8 GHz - 16 GB - no HDD
HPE ProLiant MicroServer Gen10 Plus v2 Performance 1 - ultra micro tower - Xeon E-2314 2.8 GHz - 16 GB - no HDD
- Price:
$1,192.99
- Availability:
- Mfr #: P54649-001
- UNSPSC #: 43211501
- Item #: 010055985
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | L3 cache - 8 MB |
| Cache Per Processor | 8 MB |
Miscellaneous
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC Class B certified, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC CFR47 Part 15, GB 9254, CNS 13438, K24, CISPR 32, EN 55032, K32 |
Networking
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Intel I350-AM4 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Features | Wake on LAN (WoL), ACPI support, PXE support |
Dimensions & Weight
| Width | 9.6 in |
| Depth | 9.6 in |
| Height | 4.7 in |
| Weight | 9.33 lbs |
Hard Drive
| Type | No HDD |
Graphics Controller
| Video Interfaces | VGA, DisplayPort |
Monitor
| Monitor Type | None. |
Storage Controller
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labor - 1 year - on-site - response time: next business day |
Environmental Parameters
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Sound Emission | 24 dBA |
General
| Type | Server |
| Built-in Devices | LED panel |
| Product Form Factor | Ultra micro tower |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 8 |
| Internal Bays Qty | 4 |
| Localization | Region: Americas |
Processor / Chipset
| CPU | Intel Xeon E-2314 |
| Clock Speed | 2.8 GHz |
| Max Turbo Speed | 4.5 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache |
| CPU Socket | LGA1200 Socket |
| Chipset Type | Intel C252 |
Expansion / Connectivity
| Bays | 4 (total) / 4 (free) x internal 3.5" LFF |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile ¦ 1 (total) / 1 (free) x expansion slot (iLO Enablement Kit slot) |
| Interfaces | 1 x VGA ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 - Type A (3 rear, 1 internal) ¦ 2 x USB 3.2 Gen 2 - Type A (2 in front) ¦ 1 x USB 2.0 - Type A (1 rear) ¦ 4 x LAN (Gigabit Ethernet) |
Power
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 180 Watt |
Operating System / Software
| OS Provided | No operating system |
RAM
| Installed Size | 16 GB / 64 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 16 GB |
Optical Storage
| Type | No optical drive |
