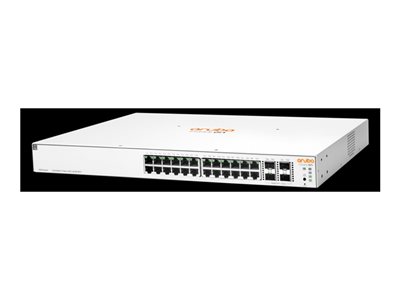

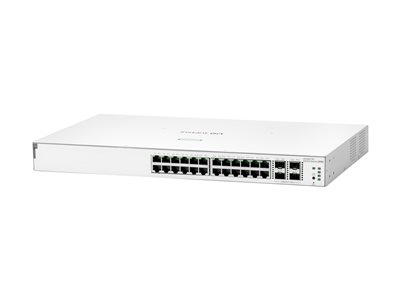

- Product Description HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch - switch - 28 ports - managed - rack-mountable
- Device Type Switch - 28 ports - L3 - managed
- Enclosure Type Rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+
- Power Over Ethernet (PoE) PoE
- PoE Budget 195 W
- Performance Switching capacity: 128 Gbps ¦ Throughput: 95.23 Mpps ¦ Latency (1 Gbps): 2.4 µs ¦ Latency (10 Gbps): 1.3 µs
- Capacity Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB
- MAC Address Table Size 16000 entries
- Jumbo Frame Support 9216 bytes
- Routing Protocol Static IP routing
- Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
- Features Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Trusted Platform Module (TPM), LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), BPDU Filter, PoE Class 4
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af
- Power AC 100-127/200-240 V (50/60 Hz)
- Dimensions (WxDxH) 17.4 in x 10.4 in x 1.7 in
- Weight 7.69 lbs
- Localization English / United States
- Manufacturer Warranty Limited lifetime warranty
|
