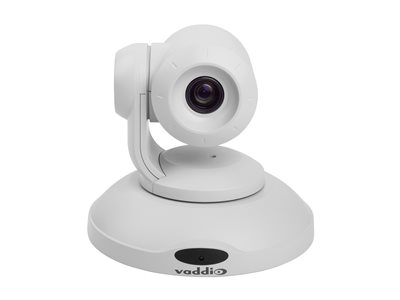

CSAV SYS CEILINGMIC 2 W/O SPKR WHT CONFERENCE
CSAV SYS CEILINGMIC 2 W/O SPKR WHT CONFERENCE
- Price:
$2,905.99
- Availability:
- Mfr #: 999-99950-700W
- UNSPSC #: 45111902
- Item #: 010083864
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | HTTP, RTSP, Telnet |
| Computer Interface | USB 3.0 |
Miscellaneous
| Included Accessories | Power injector, wall mount kit, Vaddio IR Remote Commander, 2 Vaddio CeilingMIC microphones, 2 cable clamp grommets, 2 silicone split strain relief boots, 2 CeilingMIC interface boxes, 2 ceiling trim ring plates, 2 ceiling tile braces, 4-position phoenix-style connector |
| Cables Included | 1 x network cable - external - 10 ft ¦ 1 x SuperSpeed USB cable - external - 6 ft ¦ 1 x HDMI cable - external - 6 ft ¦ 2 x network cable - external - 3 ft |
| Compliant Standards | Plug and Play |
| Color | White |
Lens Construction
| Optical Zoom | 10 x |
| Focal Length | 3.8 mm - 38 mm |
| Lens Iris | F/1.8-3.4 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 0.4 in |
| Horizontal Field of View (degree) | 7.6 - 67 |
Tilting
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 90 |
Image Sensor
| Type | 2.1 MP Exmor CMOS 1/2.8" |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
General
| Device Type | Conference camera |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Width | 6.1 in |
| Depth | 5.7 in |
| Height | 6.4 in |
| Weight | 3 lbs |
| Localization | North America |
Camera
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264 |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080/60p, 1080/30p, 1080/25p, 1080/15p |
| Digital Video Capture Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), manual gain control, auto gain control, auto white balance, noise reduction |
Panning
| Range (degree) | -165 to +165 |
| Speed (degree/sec) | Up to 90 |
Expansion / Connectivity
| Ports | USB 3.0 - 9 pin USB Type B ¦ LAN/power - RJ-45 ¦ 2 x microphone - RJ-45 ¦ Audio line out - terminal block |
Power
| Power Requirements | PoE Plus |
| Power Device | 25 Watt |
