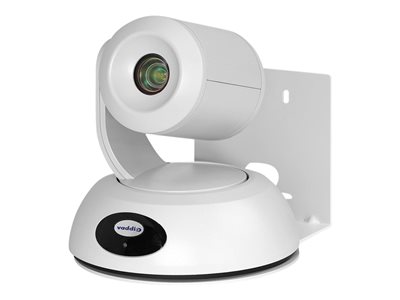

ROBOSHOT 12E QCCU SYSTEM WHT PTZ CAMERA
ROBOSHOT 12E QCCU SYSTEM WHT PTZ CAMERA
- Price:
$7,326.99
- Availability:
- Mfr #: 999-99070-000W
- UNSPSC #: 45111902
- Item #: 010083958
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | Component video, HDMI, HD-SDI |
| Network Protocols | RTSP |
| Control Interface | RS-232 |
Miscellaneous
| Included Accessories | Wall mount kit, Vaddio IR Remote Commander, Vaddio Quick-Connect Universal CCU Cat-5 Interface, 2 rack ears |
| Compliant Standards | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, FCC Part 15 A, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, ICES-003:2012 Class A, EN 61000-4-8:2010, EMC 2014/30/EU, EN 55032:2015, EN 61000-4-4:2004, IEC60950-1:2005, Second edition + A1:2009 + A2:2013, FCC Subpart B 15.107, FCC Subpart B 15.109, EN 55024:2010 Class A, EN 61000-4-3:2006+A1:2008, KN24:2008, CISPR 24:1997+A1:2000+A2:2002, EN 61000-4-2:1995+A1:1998+A2:2001, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Color | White |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 12 x |
| Focal Length | 4.4 mm - 88.4 mm |
| Lens Iris | F/2.0-3.8 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.1 in |
| Horizontal Field of View (degree) | 6.8 - 70.2 |
Tilting
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
Image Sensor
| Type | Exmor R CMOS 1/2.5" |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
General
| Device Type | Conference camera |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 7 in |
| Depth | 6.8 in |
| Height | 6.9 in |
| Weight | 4.85 lbs |
| Localization | North America |
Camera
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264 |
| Video Modes | 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 720/30p, 720/25p, 1080/59.94i, 1080/59.94p, 720/59.94p |
| Frame Rate (max) | 60 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), brightness control, Automatic Tracing White (ATW), manual gain control, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, Enhanced Wide Dynamic Range |
Panning
| Range (degree) | -150 to +150 |
| Speed (degree/sec) | Up to 120 |
Expansion / Connectivity
| Ports | Serial RS-232 - RJ-45 ¦ EZPower HD video - RJ-45 ¦ LAN - RJ-45 |
Power
| Power Device | Power adapter - external |
