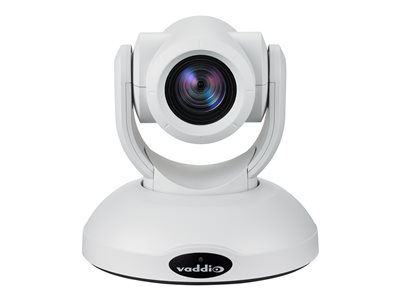

This system combines the RoboSHOT 20 UHD camera with the OneLINK Bridge to extend power, video and control over a single cable for simple, tidy installation. Production-quality RoboSHOT 20 UHD provides brilliant 4K video footage for broadcasting or live streaming applications.
Ultra HD (4K) PTZ camera with pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces this powerful UHD camera is perfect for higher education classrooms, corporate broadcasting and houses of worship.
With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing.
OneLINK Bridge connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom.
- Product Description Vaddio RoboSHOT 20 UHD OneLINK Bridge System - network surveillance camera
- Device Type Network surveillance camera - pan / tilt / zoom
- Camera Mount Type Wall mount
- Dimensions (WxDxH) 8 in x 7.7 in x 7.9 in
- Weight 5.95 lbs
- Color White
- Connectivity Technology Wired
- Camera Color
- Optical Zoom 12 x
- Max Resolution 3840 x 2160
- Frame Rate (max) 30 frames per second
- Video Modes 1080/50i, 720/50p, 1080/50p, 1080/30p, 1080/25p, 2160/25p, 2160/30p, 1080/59.94i, 1080/59.94p, 720/59.94p
- Optical Sensor Type Exmor R CMOS - 1/2.3" - 9 MP
- Minimum Illumination 3 lux - color - F1.8 - 50 IRE
- Focal Length Control Motorized zoom
- Focus Adjustment Automatic, manual (min distance 0.4 in)
- Panning Range (degree) -160 to +160
- Tilting Range (degree) -30 to +90
- Interfaces HDMI, HD-SDI, HDBaseT
- Control Interface RS-232
- Voltage DC 12 V / LTPoE ++
- Features Manual white balance, backlight compensation, white balance, Power over Ethernet, Automatic Tracing White (ATW), manual gain control, auto gain control, auto white balance, noise reduction, Auto Focus
- Environmental Parameters (operating) 23 °F - 140 °F; 20 - 80% (non-condensing) relative humidity
|
