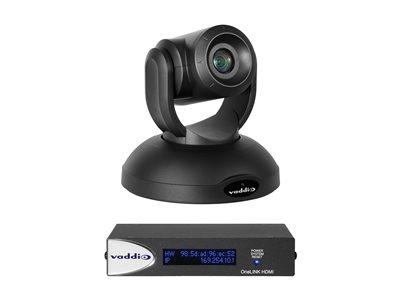

ROBOSHOT 40 UHD OL BRIDGE SYS N/A PTZ CAMERA
ROBOSHOT 40 UHD OL BRIDGE SYS N/A PTZ CAMERA
- Price:
$10,812.99
- Availability:
- Mfr #: 999-9952-200
- UNSPSC #: 45111902
- Item #: 010084101
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | HDMI, HD-SDI |
| Network Interface | HDBaseT |
| Network Protocols | RTSP, RTMP |
| Control Interface | RS-232 |
Miscellaneous
| Included Accessories | Wall mount kit, Vaddio IR Remote Commander, EZCamera RS-232 Control Adapter |
| Cables Included | 1 x USB 3.0 to USB 3.0 type B cable - external - 6 ft |
| TAA Compliant | Yes |
| Compliant Standards | FCC |
| Color | Black |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 4.4 mm - 88.4 mm |
| Lens Iris | F/2.0-3.8 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.1 in |
| Horizontal Field of View (degree) | 2.05 - 70.2 |
Tilting
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Image Sensor
| Type | 8.5 MP Exmor R CMOS 1/2.5" |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
General
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 8 in |
| Depth | 5.5 in |
| Height | 7.9 in |
| Weight | 6 lbs |
| Localization | United States |
| Bundled with | Vaddio OneLINK Bridge |
Camera
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264 |
| Max Digital Video Resolution | 3840 x 2160 |
| Video Modes | 2160/30p |
| Digital Zoom | 40 |
| Minimum Illumination | 1.6 lux F2.0 |
| Features | Manual white balance, Backlight Compensation (BLC), 16 preset positions, auto white balance, noise reduction, Enhanced Wide Dynamic Range |
Panning
| Range (degree) | -160 to +160 |
| Speed (degree/sec) | Up to 120 |
Expansion / Connectivity
| Ports | Serial RS-232 ¦ HDMI ¦ HDBase-T ¦ HD-SDI |
Power
| Power Requirements | DC 12 V / LTPoE ++ |
| Power Device | Power adapter - external |
