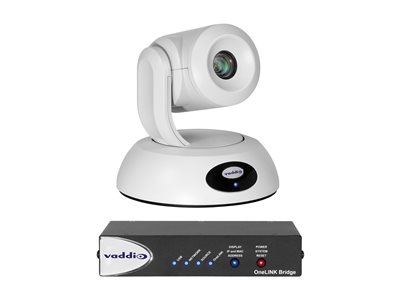

ROBOSHOT 12E HDBT WHT OLB SYS FOR PLYCM PTZ CAMERA
ROBOSHOT 12E HDBT WHT OLB SYS FOR PLYCM PTZ CAMERA
- Price:
$7,534.99
- Availability:
- Mfr #: 999-96450-500W
- UNSPSC #: 45111902
- Item #: 010084111
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | HDMI |
| Network Interface | HDBaseT |
| Network Protocols | RTSP, Telnet, RTMP |
Miscellaneous
| Included Accessories | Wall mount kit, Vaddio IR Remote Commander, 3-position phoenix-style connector, EZCamera RS-232 Control Adapter, OneLINK Bridge AV interface, power adapter |
| Cables Included | 1 x fan-out cable - external - 2 ft ¦ 1 x USB 3.0 to USB 3.0 type B cable - external - 6 ft |
| TAA Compliant | Yes |
| Compliant Standards | FCC |
| Color | White |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 12 x |
| Focal Length | 4.4 mm - 88.4 mm |
| Lens Iris | F/2.0-3.8 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.1 in |
| Horizontal Field of View (degree) | 4.1 - 70.2 |
Tilting
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Image Sensor
| Type | 8.6 MP Exmor R CMOS 1/2.5" |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% RH (non-condensing) |
General
| Device Type | Conference camera |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 7.1 in |
| Depth | 6.7 in |
| Height | 6.9 in |
| Weight | 4.85 lbs |
| Localization | North America |
Camera
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264 |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 1080/59.94i, 1080/59.94p, 720/59.94p |
| Digital Zoom | 19 |
| Exposure Range | 1 sec - 1/10000 sec |
| Minimum Illumination | 1 lux F1.6 |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), 16 preset positions, manual gain control, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, Enhanced Wide Dynamic Range, Spotlight Compensation Mode |
Panning
| Range (degree) | -150 to +150 |
| Speed (degree/sec) | Up to 120 |
Expansion / Connectivity
| Ports | HDMI ¦ HDBase-T/power - RJ-45 |
Power
| Power Requirements | PoE Plus |
