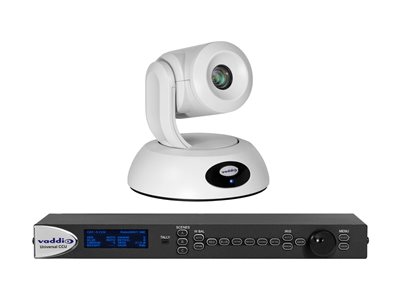

RoboSHOT Elite Series cameras are professional A/V presentation cameras. The RoboSHOT 30E QCCU system delivers high-quality HD video, power, and control over three Cat5 cables. Outputs include analog component YPbPr, HDMI, and HD-SDI for extreme flexibility in system design and integration.
Introducing the RoboSHOT Elite Series - Vaddio's next generation of professional cameras. Designed with a 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Signal processing (ISP) results in better light-gathering capabilities, incredible contrast, and sharp 1080p/60p video, even in dim lighting conditions. RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or overbright areas in video more visible and detailed. A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers, and overall IT control.
- Product Description Vaddio RoboSHOT Elite Series 30E QCCU System - conference camera
- Device Type Conference camera - pan / tilt / zoom
- Camera Mount Type Wall mount
- Dimensions (WxDxH) 7.1 in x 6.8 in x 6.9 in
- Weight 4.85 lbs
- Color White
- Connectivity Technology Wired
- Camera Color
- Optical Zoom 30 x
- Frame Rate (max) 60 frames per second
- Video Modes 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 720/30p, 720/25p, 1080/59.94i, 1080/59.94p, 720/59.94p
- Optical Sensor Type Exmor CMOS - 1/2.5" - 8.6 MP
- Minimum Illumination 1 lux F1.6
- Focal Length Control Motorized zoom
- Focal Length 4.3 mm - 129 mm
- Focus Adjustment Automatic, manual (min distance 0.4 in)
- Lens Iris F/1.6-4.7
- Panning Range (degree) -160 to +160
- Tilting Range (degree) -30 to +90
- Interfaces Component video, HDMI, HD-SDI
- Control Interface RS-232
- Voltage DC 36 V
- Features Manual white balance, backlight compensation, brightness control, Automatic Tracing White (ATW), manual gain control, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, Enhanced Wide Dynamic Range
- Manufacturer Warranty 2-year warranty
- Environmental Parameters (operating) 32 °F - 104 °F; 20 - 80% (non-condensing) relative humidity
|
