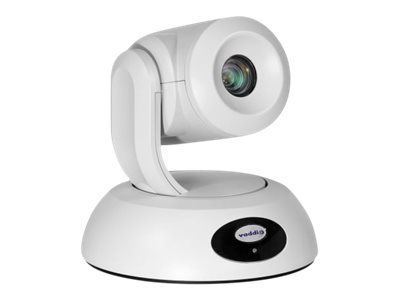

The EasyIP 20 camera is an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch - eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).
This package includes: EasyIP 20 camera; Thin profile wall mount with mounting hardware; IR remote commander; 10ft Cat5e cable - Black.
- Product Description Vaddio EasyIP 20 - conference camera - TAA Compliant
- Device Type Conference camera - pan / tilt / zoom
- Camera Mount Type Surface mount, wall mount
- Dimensions (WxDxH) 7.1 in x 6.8 in x 6.9 in
- Weight 4.85 lbs
- Color White
- Connectivity Technology Wired
- Camera Color
- Optical Zoom 20 x
- Video Modes 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/25p, 1080/59.94i, 1080/59.94p, 720/59.94p
- Optical Sensor Type Exmor CMOS - 1/2.5" - 8.5 MP
- Minimum Illumination 1.6 lux
- Focal Length Control Motorized zoom
- Focal Length 4.4 mm - 88.4 mm
- Focus Adjustment Automatic, manual
- Lens Iris F/2.0-3.8
- Panning Range (degree) -150 to +150
- Tilting Range (degree) -30 to +90
- Interfaces HDMI, Ethernet 10Base-T/100Base-TX/1000Base-T
- Control Interface RS-232
- Cables Included 1 - network cable - external - 10 ft
- Voltage PoE Plus
- Features Manual white balance, backlight compensation, Power over Ethernet, 16 preset positions, manual gain control, Wide Dynamic Range (WDR) Enhanced, auto gain control, auto white balance, noise reduction, invertible, Spotlight Compensation Mode
- TAA Compliant Yes
- Manufacturer Warranty 2-year warranty
- Environmental Parameters (operating) 32 °F - 104 °F; 20 - 80% (non-condensing) relative humidity
|
