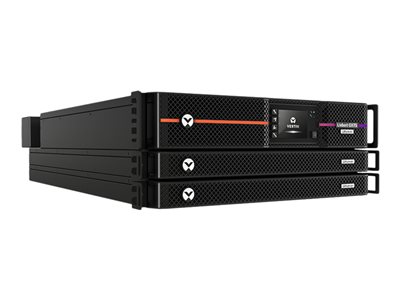

GXT5 LI 10KVA 208/120V RT XL UPS
GXT5 LI 10KVA 208/120V RT XL UPS
- Price:
$15,568.99
- Availability:
- Mfr #: GXT5LI-10KMVRT4UXLN
- UNSPSC #: 39121011
- Item #: 010088013
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | USB-A to USB-B cable - external - 6 ft |
| Equipment Protection Value | 500000 US Dollars |
| Features | Hot-swappable batteries, user-replaceable batteries, integrated maintenance bypass cabinet |
| Compliant Standards | cUL, IEC 61000-4-5, NOM, UL 1778, WEEE, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, RoHS2, UL 1642, ISTA 2A, EU RoHS 2002/95/EC, UL 1973, ANSI C62.41 Category B |
Networking
| Remote Management Interface | Ethernet |
| Remote Management Protocol | SNMP |
Dimensions & Weight
| Width | 16.9 in |
| Depth | 35 in |
| Height | 6.9 in |
| Weight | 125.66 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years ¦ Limited warranty - batteries - 5 years |
Battery
| Technology | Lithium ion |
| Run Time (Up To) | 11 min at full load ¦ 23 min at half load |
| Recharge Time | 2 hours |
| Transfer Time | 0 ms |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Sound Emission | 58 dB |
General
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 4U |
Power Device
| UPS Technology | On-line |
| Frequency Provided | 40 - 70 Hz |
| Input Connectors | Hardwire |
| Power Output Connectors Details | Hardwire 4-wire (2PH+N+G) |
| Output Voltage | AC 120/208 V 40 - 70 Hz |
| Power Capacity | 10000 Watt / 10000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
Expansion / Connectivity
| Interfaces | 1 x management (Ethernet) - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x Liebert IntelliSlot |
Software / System Requirements
| Software Included | Vertiv Power Insight |
