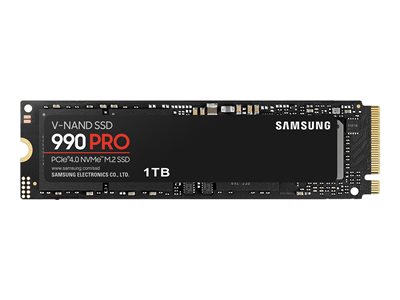

Samsung 990 PRO 1TB M2 SSD
Samsung 990 PRO 1TB M2 SSD
- Price:
$119.99
- Availability:
- Mfr #: MZ-V9P1T0B/AM
- UNSPSC #: 43201803
- Item #: 010091863
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | IEEE 1667 |
| Package Details | Box |
Software & System Requirements
| Software Included | Samsung Magician Software |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years / 600 TBW |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 20 g @ 20-2000 Hz |
General
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | TRIM support, sleep mode, Auto Garbage Collection Algorithm, Dynamic Thermal Guard protection, 1 GB Low Power DDR4 SDRAM Cache, Samsung V-NAND 3bit MLC Technology, S.M.A.R.T., NVMe 2.0 |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Weight | 0.32 oz |
Expansion & Connectivity
| Compatible Bay | M.2 2280 |
Performance
| SSD Endurance | 600 TB |
| Drive Transfer Rate | 8 GBps (external) |
| Internal Data Rate | 7450 MBps (read) / 6900 MBps (write) |
| 4KB Random Read | 1200000 IOPS |
| 4KB Random Write | 1550000 IOPS |
Reliability
| MTBF | 1,500,000 hours |
Power
| Power Consumption | 5.4 Watt (read) ¦ 5 Watt (write) ¦ 50 mW (idle) ¦ 5 mW (L1.2 mode) |
