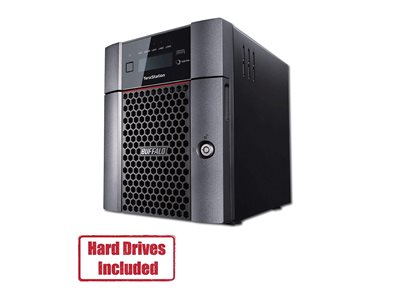

BUFFALO TeraStation 5020 Series TS5420DN2402 - NAS server - 24 TB - TAA Compliant
BUFFALO TeraStation 5020 Series TS5420DN2402 - NAS server - 24 TB - TAA Compliant
- Price:
$1,476.99
- Availability:
- Mfr #: TS5420DN2402
- UNSPSC #: 43201835
- Item #: 010157653
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Processor / Memory
| Processors Installed | Annapurna Labs Alpine AL524 2.04 GHz |
| Number of Cores | Quad-Core |
| RAM | 8 GB DDR4 |
| Features | ECC |
Miscellaneous
| Cables Included | 1 x network cable |
| Features | Hot spare support, replication, failover |
| Compliant Standards | RoHS |
| Included Accessories | Front panel key, power cable |
| TAA Compliant | Yes |
Networking
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, 10 GigE, 5 GigE, 2.5 GigE |
| Network / Transport Protocol | TCP/IP, FTP, SFTP, FTPS |
| Remote Management Protocol | SNMP |
| Network Services Compatibility | Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), SFTP |
| Features | E-mail notification, cloud managed, B-tree file system (Btrfs), port trunking, remote monitoring and management (RMM), file system snapshot, UPS compatible, Rapid RAID change, iSCSI backup |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz |
Storage Controller
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
General
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Total Storage Capacity | 24 TB |
| Max Supported Capacity | 64 TB |
| Built-in Devices | Status LCD |
| Installed Devices / Modules Qty | 2 (installed) / 4 (max) |
| Width | 6.7 in |
| Depth | 9.1 in |
| Height | 8.5 in |
| Weight | 12.41 lbs () |
Hard Drive
| Type | HDD - hot-swap |
| Capacity | 2 x 12 TB |
| Interface Type | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Features | Conventional magnetic recording (CMR) |
Expansion / Connectivity
| Expansion Bays | 4 (total) / 2 (free) x hot-swap |
| Interfaces | 1 x Ethernet 10Gb - RJ-45 ¦ 2 x Ethernet 1000Base-T - RJ-45 ¦ 2 x USB 3.2 - Type A ¦ 2 x USB 2.0 - Type A |
Dimensions & Weight (Shipping)
| Shipping Width | 12.2 in |
| Shipping Depth | 14.1 in |
| Shipping Height | 14.3 in |
| Shipping Weight | 16.01 lbs |
Power
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 72 Watt |
Software / System Requirements
| Storage Operating System | Linux |
| Software Included | NAS Navigator2, Trend Micro NAS Security, NovaBACKUP Buffalo Edition |
| OS Required | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.13 or later, Windows 8.1 / 10 / 11 |
| TAA Compliant | Yes |
