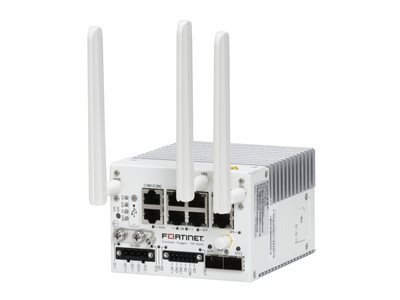

- Product Description Fortinet FortiGate Rugged 70F-3G4G - security appliance
- Device Type Security appliance
- Form Factor DIN rail mountable
- Processor 1 x Fortinet FortiASIC SOC4
- Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance IPv4 firewall throughput (1518-byte UDP): 8 Gbps ¦ IPv4 firewall throughput (512-byte UDP): 8 Gbps ¦ IPv4 firewall throughput (64-byte UDP): 8 Gbps ¦ Firewall latency (64-byte UDP): 6.71 µs ¦ Firewall throughput: 12 Mpps ¦ VPN throughput (512-bit IPSec): 6.5 Gbps ¦ VPN throughput (SSL): 450 Mbps ¦ SSL inspection throughput: 500 Mbps ¦ Application control throughput: 1.1 Gbps ¦ IPS throughput: 975 Mbps ¦ NGFW throughput: 950 Mbps ¦ Threat protection throughput: 580 Mbps
- Capacity Concurrent TCP sessions: 1000000 ¦ New TCP sessions per second: 35000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 500 ¦ Concurrent SSL VPN users: 100 ¦ SSL inspection CPS: 380 ¦ SSL inspection concurrent sessions: 90000 ¦ Virtual domains: 10 ¦ Number of FortiAP devices: 64 ¦ Number of FortiAP devices (tunnel): 32 ¦ Number of FortiToken devices: 500 ¦ Number of FortiSwitches: 24
- Mobile Broadband Access Yes
- Generation 3G, 4G
- Cellular Protocol UMTS, HSPA+, LTE
- Cellular Band UMTS/HSPA+ B1/B2/B3/B4/B5/B6/B8/B9/B29 / LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B18/B19/B20/B26/B28/B29/B30/B32/B41/B42/B43/B46/B48/B66
- Included Accessories DIN-rail bracket, I/O connector, power connector
- Power Redundancy Optional
- Dimensions (WxDxH) 4.4 in x 4.8 in x 3.2 in
- Weight 2.87 lbs
|
