The FortiGate 4800F series enables organizations to build security-driven networks that can weave security deep into their datacenter and across their hybrid IT architecture to protect any edge at any scale.
Powered by a rich set of AI/ML-based FortiGuard services and an integrated security fabric platform, the FortiGate 4800F series delivers coordinated, automated, end-to-end threat protection across all use cases.
The integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, FortiGate 4800F automatically controls, verifies, and facilitates user access to applications delivering consistent convergence with a seamless user experience.

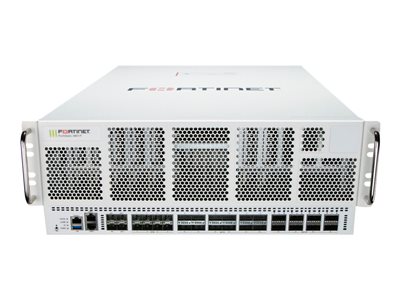

- Product Description Fortinet FortiGate 4800F - security appliance
- Device Type Security appliance
- Form Factor Front to back airflow rack-mountable - 4U
- Processor Fortinet FortiASIC CP9/NP7
- Data Link Protocol 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet
- Performance IPS throughput (enterprise traffic mix): 87 Gbps ¦ NGFW throughput (enterprise traffic mix): 77 Gbps ¦ Threat protection throughput (enterprise traffic mix): 75 Gbps ¦ Firewall throughput (1518-byte UDP): 3.1 Tbps ¦ Firewall throughput (512-byte UDP): 3.1 Tbps ¦ Firewall throughput (64-byte UDP): 0.93 Tbps ¦ IPv6 firewall throughput (1518-byte UDP): 3.1 Tbps ¦ IPv6 firewall throughput (512-byte UDP): 3.1 Tbps ¦ IPv6 firewall throughput (86-byte UDP): 0.93 Tbps ¦ Firewall latency (64-byte UDP): 3.6 µs ¦ Firewall throughput: 1396 Mpps ¦ VPN throughput (512-bit IPSec): 800 Gbps ¦ VPN throughput (SSL): 18 Gbps ¦ SSL inspection throughput: 63 Gbps ¦ Application control throughput: 180 Gbps ¦ CAPWAP throughput: 112 Gbps
- Capacity Concurrent TCP sessions: 1800000000 ¦ New TCP sessions per second: 25000000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 40000 ¦ Client to gateway IPSec VPN tunnels: 200000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL inspection CPS: 60000 ¦ SSL inspection concurrent sessions: 3000000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 500 ¦ Number of FortiSwitches: 300 ¦ Number of FortiAP devices: 8192 ¦ Number of FortiAP devices (tunnel): 4096 ¦ Number of FortiToken devices: 20000
- Power AC 100-240 V (50 - 60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17.1 in x 26.1 in x 6.9 in
- Weight 90.83 lbs
|
