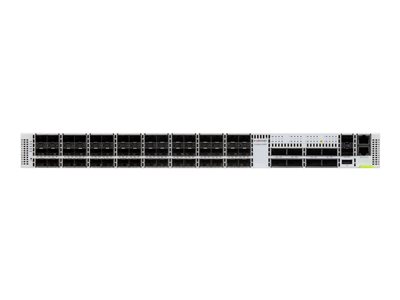

- Product Description Fortinet FortiSwitch 2048F - switch - 48 ports - managed - rack-mountable
- Device Type Switch - 48 ports - managed - stackable
- Enclosure Type Front to back airflow rack-mountable 1U
- Subtype 100 Gigabit Ethernet
- Ports 48 x 1/10/25 Gigabit SFP28 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40/100 Gigabit QSFP28
- Performance Switching capacity: 4000 Gbps ¦ Switching capacity (64-byte packet size): 4000 Mpps ¦ Packets per second: 1310 Mpps ¦ Latency: < 1 µs ¦ Packet buffer size: 32 Mbit
- Capacity ACL entries: 3000 ¦ Host entries: 16000 ¦ MAC addresses: 144000 ¦ VLANs supported: 4000 ¦ Maximum aggregation groups: 48 ¦ Queues per port: 8 ¦ Multicast routes: 8000 ¦ IPv4 routes: 16000 ¦ IPv6 routes: 8000
- MAC Address Table Size 128K entries
- Jumbo Frame Support Yes
- Routing Protocol OSPF, RIP, IS-IS, BGP, VRRP, static IP routing, PIM-SSM, VXLAN
- Remote Management Protocol SNMP 1, RMON 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, MIB
- Features ALERT notification, load balancing, WOL, IGMP snooping, Syslog support, port mirroring, IPv6 support, High Availability, SNTP support, sFlow, DHCP snooping, RADIUS support, DHCP server, MLD snooping, DAI, ECMP, BFD, URPF, LLDP support, DHCP relay, RSPAN, IP-MAC binding, VRF, static routing, IGMP proxy, MACsec support, MLD proxy, IP source guard, ECN, VXLAN, policy based routing, IGMP querier, MLAG, LLDP-MED, RA guard, ERSPAN, MAB, SPAN mode, MLD querier, LLDP Neighbor Discovery, ACL support, Ingress ACL, dynamic packet capture, sticky MAC
- Compliant Standards IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1Qbb
- Power AC 100-240 V (50 - 60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17.3 in x 18.1 in x 1.7 in
- Weight 21.78 lbs
- Manufacturer Warranty Limited lifetime warranty
|
