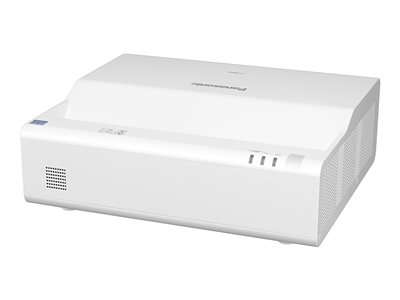

5200 LUMENS WUXGA ULTRA SHORT THROW LASER WHITE
5200 LUMENS WUXGA ULTRA SHORT THROW LASER WHITE
- Price:
$4,954.99
- Availability:
- Mfr #: PT-CMZ50U
- UNSPSC #: 45111609
- Item #: 010355668
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Projector
| Brightness | 5200 lumens |
| Contrast Ratio | 3000000:1 |
| Image Size | 79.9 in - 120 in |
| Throw Ratio | 0.235 - 0.288:1 |
| Uniformity | 85 % |
| Resolution | WUXGA - WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Display Format | 2,304,000 pixels (1920 x 1200) x 3 |
| Lamp Type | Laser diode |
| Lamp Life Cycle | Up to 20000 hour(s) - normal mode ¦ Up to 24000 hour(s) - economic mode |
| Controls & Adjustments | Keystone correction |
| Features | PJlink, DICOM Simulation Mode, AMX Device Discovery, Detail Clarity Processor 4, Crestron Connected, USB Viewer, SOLID SHINE Laser Technology, Ultra Quiet Operation, ceiling mount hole, Digital Zoom Extender, CEC compatible |
Dimensions & Weight
| Width | 19.5 in |
| Depth | 16.6 in |
| Height | 6.3 in |
| Weight | 20.94 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Sound Emission | 35 dB |
| Sound Emission (Economic Mode) | 26 dB |
General
| Device Type | 3LCD projector |
| Built-in Devices | Speaker |
| Networking | Ethernet |
Video Input
| Video Interfaces | VGA, HDMI |
Lens
| Focus Type | Powered |
| Lens Aperture | F/1.7 |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -3 / +3 |
| Horizontal Keystone Correction | -3 / +3 |
| Lens Shift Type | Manual |
| Vertical Lens Shift | 10% / 10% |
| Horizontal Lens Shift | 10% / 10% |
Speakers
| Type | Integrated |
| Sound Output Mode | Mono |
| Output Power / Channel | 10 Watt |
| Speakers | 1 x mixed channel |
Expansion / Connectivity
| Interfaces | 2 x HDMI input - 19 pin HDMI Type A ¦ HDMI output - 19 pin HDMI Type A ¦ 1 x component video / RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) (management) ¦ 1 x DIGITAL LINK - RJ-45 ¦ 1 x network - RJ-45 ¦ 1 x USB - 4 pin USB Type A |
Power
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 290 Watt |
Software / System Requirements
| Software Included | Logo Transfer Software, Multi Projector Monitoring & Control Software, Wireless Projector App, Presenter Light for Windows, Projector Network Setup |
